| Feature | Jupiter A | Jupiter B | Jupiter C | Jupiter D |
|---|---|---|---|---|
| Series II | Series II | Series II | Series II | |
| Lithium Battery Voltage | 12V | 12V | 48V | 48V |
| Switching and Control Voltage | 12V | 12V | 12V | 12V |
| DC DC | 50A | 50A | 125A | 125A can be upgraded to 250A |
| Replenishes 400Ah Lithium (12V equiv) in this time 20-100% | 6.4 hours | 6.4 Hours | 2.5 Hours | 1.2 Hours |
| Inverter | 2000 VA | 3000 VA | 3000 VA | 5000 VA |
| Integrated 240V AC Charging | 1400 watts | 2100 Watts | 2100 Watts | 3750 Watts |
| Solar MPPT Controller Panel Power | 650 Watts | 650 Watts | 1100 Watts | 1100 Watts |
| Smart Battery Protect | Yes | Yes | Integrated in Scotty | Integrated in Scotty |
| Digital Switching Channels | 12 x 10A | 12 x 10A | 12 x 10A | 12 x 10A |
| Dimmable Channels | 8 x 10A | 8 x 10A | 8 x 10A | 8 x 10A |
| RGBW Multi Colour Capable | Yes can have 2 x RGBW LED | Yes can have 2 x RGBW LED | Yes can have 2 x RGBW LED | Yes can have 2 x RGBW LED |
| Double Press to use one switch for dual colour LED's | Yes | Yes | Yes | Yes |
| Keypads included | 1 x 8 button with indicating LED and backlit engravable | 1 x 8 button with indicating LED and backlit engravable | 1 x 8 button with indicating LED and backlit engravable | 1 x 8 button with indicating LED and backlit engravable |
| Optional Keypads that can be added | Any number of wireless or CAN keypads. Up to 6 switches can switch on output | Any number of wireless or CAN keypads. Up to 6 switches can switch on output | Any number of wireless or CAN keypads. Up to 6 switches can switch on output | Any number of wireless or CAN keypads. Up to 6 switches can switch on output |
| Short-Circuit Protection on the STAR-Light circuits | Advanced protection activating within 80 microseconds | Advanced protection activating within 80 microseconds | Advanced protection activating within 80 microseconds | Advanced protection activating within 80 microseconds |
| Touch Screen Supported | 5 in Victron Touch Screen | 5 in Victron Touch Screen | 5 in Victron Touch Screen | 5 in Victron Touch Screen |
| Case Material | Stainless steel case | Stainless steel case | Stainless steel case | Stainless steel case |
| Physical Dimensions | 750mm Long 750mm High 160mm wide | 750mm Long 750mm High 160mm wide | 750mm Long 750mm High 160mm wide | 750mm Long 750mm High 160mm wide |
| 240V In | 240V Power in 15A | 240V Power in 15A | 240V Power in 15A | 240V Power in 15A |
| 240V out | Double GPO Out | Double GPO Out | Double GPO Out | Double GPO Out |
| USB | Dual USB incl Type C and Cig outlets | Dual USB incl Type C and Cig outlets | Dual USB incl Type C and Cig outlets | Dual USB incl Type C and Cig outlets |
| Anderson Out | 2 Anderson Out: Compressor 50A Multiple Fridges 40A | 2 Anderson Out: Compressor 50A Multiple Fridges 40A | 2 Anderson Out: Compressor 50A Multiple Fridges 40A | 2 Anderson Out: Compressor 50A Multiple Fridges 40A |
| Battery Connection | Amphenol Plug n play cable connections | Amphenol Plug n play cable connections | Amphenol Plug n play cable connections | Amphenol Plug n play cable connections |
| Solid State Battery Integration | CAN connection to Victron System No Shunt needed | CAN connection to Victron System No Shunt needed | CAN connection to Victron System No Shunt needed | CAN connection to Victron System No Shunt needed |
| Wireles Temperature Sensor Integration | Up to 8 blutooth pucks (optional purchase) can be added and see on screen | Up to 8 blutooth pucks (optional purchase) can be added and see on screen | Up to 8 blutooth pucks (optional purchase) can be added and see on screen | Up to 8 blutooth pucks (optional purchase) can be added and see on screen |
| Modem for hone visibility with Internet | Optional Modem available | Optional Modem available | Optional Modem available | Optional Modem available |
Jupiter is pre-wired with all the inputs and outputs on the case.
The Photo shows a Jupiter D series I.
On the front panel are the power inputs and outputs with 5inch touch screen .
The GPO’s are ready to go as well as the 240V power in.
A certificate of compliance is issued so there is no need for an authorised electrcian at installation. We have taken care of that inside the case.
Series II has 2 major improvements.
The digital switching is upgraded to STAR-Light V2 with 12 channels of 10A switchable outputs .
Integration of the new Solid State Lithium batteries gives a screen view of the cell min/max and number of batteries on line and number of batteries charging/ discharging. Solid State Lithium is the safest lithium available. The Batteries are not included and are an optional extra.
The Victron Display shows the details of the batteries as they are compliant and compatible with Victron. You cant see this display with non-compliant lithium batteries.
Simply Plug in your caravan
Run the caravan from the 4WD as if you are on a powered site.
The length of time that you can operate for depends on the power load of the caravan and length of time. In our experience, here are typical times:
With 4 x Solid State in 4WD (850ah at 12V equiv) but generally 48V:
This battery will disrupt the lithium business because of it’s incredible safety and long cycle life of 10,000cycles.
It may well be that insurer’s will insist on this technology in the future as it significantly lessens their risk.
Safiery have fitted the same Victron and Marine compliant BMS that shows min/max cell voltages and temperature.
This is THE Ultimate in Lithium batteries.
420mm L x 250mm H x 150mm D about 20kgs
The traditional liquid lithium battery is called a ‘rocking chair battery’ by the scientific community because of its charging and discharging principle. The two ends of the rocking chair are the positive and negative poles of the battery, and the middle is the liquid electrolyte. Lithium electrons move back and forth across the two ends of the rocking chair and complete the charge and discharge of the battery during the process. In this process, there are many safety hazards: if there is overcharging, the battery is prone to heat, causing the electrolyte to swell, decompose, spontaneously ignite or even explode. The charging and discharging principle of a solid-state battery is the same as that of a liquid battery. The only difference is that its electrolyte is solid, which has many advantages over liquid electrolytes:
1) Higher Safety: The liquid electrolyte in traditional batteries creates safety hazards if over charging or electrical abuse. The result is thermal runaway and fire. Solid-state batteries have higher safety without this electroyte mass.
2) Higher Cycle Life: Because solid-state batteries use solid electrolytes, the cycle life is doubled. A minimum of 10,000 cycles at 80% depth of discharge is expected.
3) High energy density: As solid-state batteries use solid electrolytes, they do not need to use lithium-intercalated graphite anodes, but directly use metal lithium as the anode, which can reduce the amount of anode materials and increase the energy density of the entire battery.
4) Smaller size: The separator and electrolyte in the traditional liquid lithium battery account for nearly 25% of the entire battery mass. With the solid electrolyte, the distance between the positive and negative electrodes can be shortened to ten micrometers. The result is smaller battery dimensions and better quality control.
5) Lower temperature Range: Solid State Lithium is less affected by freezing temperatures because of the solid layers.
6) High Discharge rate:Solid State Batteries can discharge up to 10C. However, the BMS current rating limits discharge rates to 1C Continuous and 2C for 10 secs.
SAFETY SPECIFICATION

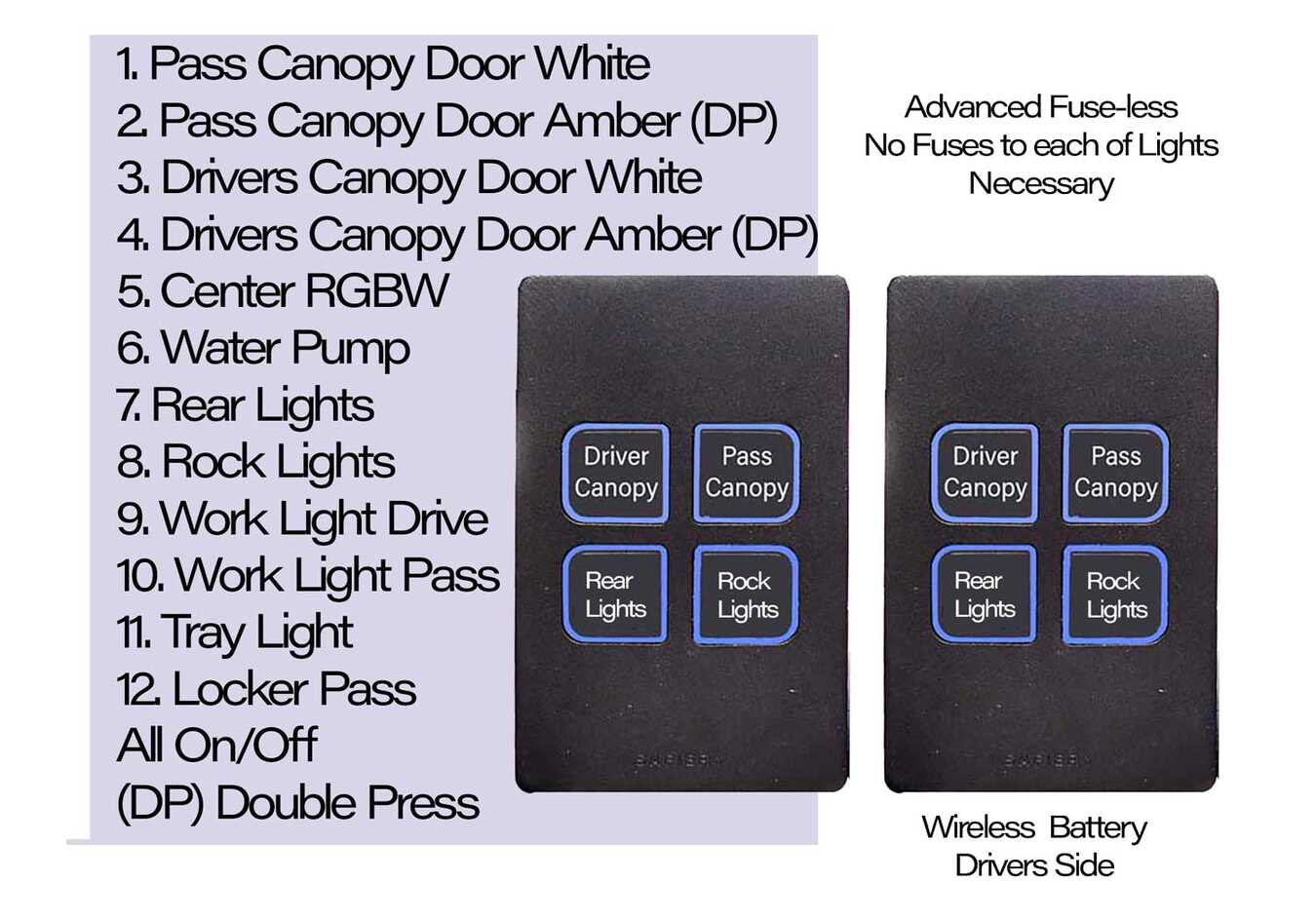

STAR-Light has 12 Channels to switch.
See the suggested list in the image on the right.
The Dual colour channels can be controlled by a single button.
For example the Work Light Driver and Passenger can be controlled with a single button: “Work Lights”.
Press for Passenger side, Double Press for Drivers side, Press again for both to come on.
This way, 12 outputs can be controlled by a single 8 button keypad.
Included in Jupiter Pack is the rubberised 8 button keypad. It has such a nice traditional button press but your fingers can be grimy or dripping inoil ad they clean up easily.
As an option to add are the choice of Engravable CAN or Battery operated long range bluetooth for the drivers side Or our new interchangeable icon keypad (optional extra)
Customers wanted a digital switching system that is so easy to install. Everyone wanted to operate only with switches, others touch screens and then others to use a phone app. Safiery have all these forms of control. The simplicity is that all these communication paths go directly to the STAR controller. This reduces the cost to make STAR Range around half the cost per output to the published retail price of Redarc equialent.
| Feature | STAR-Light V2 | TVMS Rogue |
|---|---|---|
| Channels | 12x 10A dimmable channels | 10x 10A dimmable outputs |
| Maximum Output Current | 40A (total for all channels) | 40A (total for all channels) |
| Switch Styles | CAN wired 8 or 12 button, wireless 4 button | None, individual switches (not supplied) have to be wired in. No Wireless |
| Short-Circuit Protection | Advanced protection activating within 80 microseconds | On-board smart fuses – activation time not specified |
| Integration | Integrates with STAR-Touch 7in screen and Victron power system | Pairs with Manager30 battery management system and RedVision display |
| Dimming LEDS | Yes 8 channels Dimmable | Yes 10 channels Dimmable |
| RGBW Multi-colour LED | Yes up to 2 x RGBW Leds | No Multi-colour not possible |
| White Amber LED Switching | Yes Dual colour lights can be alternately switched from the one switch with a double press | No not possible |
| Case Material | All Alloy anodized | Plastic |
| Physical Dimensions | 120mm x 90mm x 30mm | 250mm x 130mm x 25mm |
| Operating Voltage | 12V | 12V |
| Temperature Range | -20°C to 70°C | -20°C to 70°C |
| Touch Screen Supported | 7 inch Touch Screen WiFi Wireless also integrates with Victron range and STAR-Tank Bluetooth Wireless (up to 5 tanks) | RedVision screen, or mobile app via Bluetooth, up to 2 tanks supported |
| Additional Features | Long-range Bluetooth connectivity tested up to 40 meters with some metal obstruction | Ignition input. |
Tank measurement can be so troublesome. If you have a jack-off canopy, then even more so. This is why we developed a bluetooth battery operated radar tank level sensor.
It communicates directly with Victron Cerbo or if you dont have a Victron System then see it on the STAR-Touch 7 inch Display when you combin with STAR-Power.
