Battery Dimensions
| Dimensions | mm |
| Wide | 180 |
| Long | 420 |
| High | 250 |
BMS Platform is independent to the Battery which contains a Cell Monitoring Module. Up to 63 CMD's are connected to one BMS Master.
The all in one ISO26262 ASIL D BMS platform ready to protect and extend battery life in automotive and energy storage applications.
Automotive grade BMS platform with integrated insultation monitoring system, capable of managing batteries up to 1500V and with off-the-shelf 18s cell monitoring units. The system is ISO26262 ASIL D ready and includes EVITA HSM for ISO21434 cybersecurity standard.
Main features
- Cell chemistry agnostic BMS
- Up to 1500V battery systems
- Ready to use products for high voltage or low voltage applications
- Up to 63 daisy chain communicated BMU control
- Sleep mode enabling low power consumption
- Internal and external faults detection and reporting Error log for failure cause analysis and safe system recovery
- SoC, SoP, SoH battery diagnostics algorithms
- Configuration, calibration and software upgrade support
- ASIL D certified hardware (ISO 26262)
- Automotive grade compliant components
- Insulation monitoring system integrated

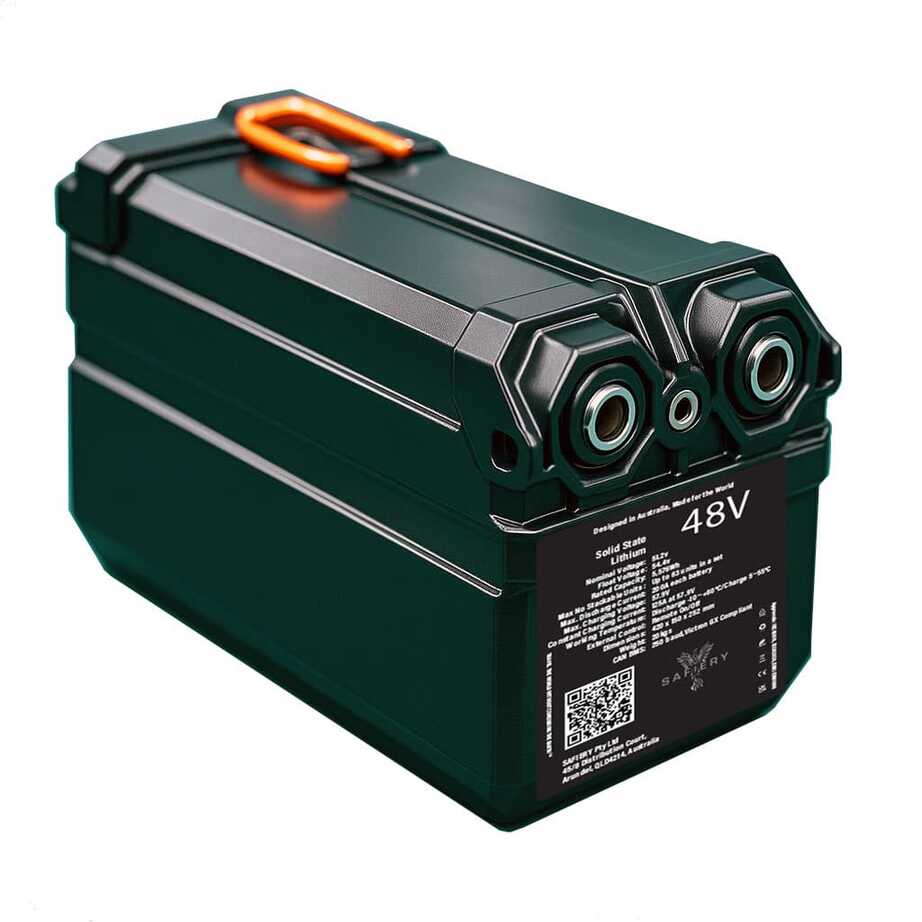

Battery Specification
| Structure | Solid State |
| Chemistry | NCM |
| Capacity | 5,665 Wh |
| Weight | 20kg |
| Energy Density | Cells 360Wh/kg |
| Charge Rate | 1C to 1.5C |
| Discharge Rate | 1C to 2C |
| Cell Configuration | 15S |
| Max Voltage | 63V |
| Min Voltage | 40.5V |
| Max number of modules for one BMS | 63 so approx 356kWh max capacity |
