One place to control the essentials
Bring your lights, pumps and 12V accessories onto named tiles that show their confirmed state.
QUASAR GLASS CONTROL
Put your 12V system on real glass.
Switch lights, pumps and accessories from a clear touchscreen. Glass Control combines Quasar Glass, the Glass Router and STAR-Light in one expandable starting system.
1 × Glass 41 × Glass Router1 × STAR-Light
The Glass Control price loads with the catalogue.
Have an account? Log in to see your price on these products.
Log inTouchscreen control for up to 12 STAR-Light channels.
See it switchTap. Confirm. Done.
Wired once. Switched from Glass.
Every load is wired to its own STAR-Light channel. Glass shows each channel as a named tile, and every tap comes back as the state STAR-Light confirms.
STAR-Light, the Glass Router and Quasar Glass each run from a 12 V DC supply, and every load is wired to its channel. See how it connects
Loads → STAR-Light channels → Bluetooth → Quasar Glass 4
Wired for power. Wireless for data.
Illustrative drawings and screens. The load names, channels and levels are examples.
Features
Switching you can see
Controls where you need them
Use Glass as the main interface and add compatible wireless switches or additional displays where they make sense.
Grow beyond switching
Add tanks, environmental sensors, cameras and power-system visibility without replacing the core bundle.
In the box
What comes in the bundle

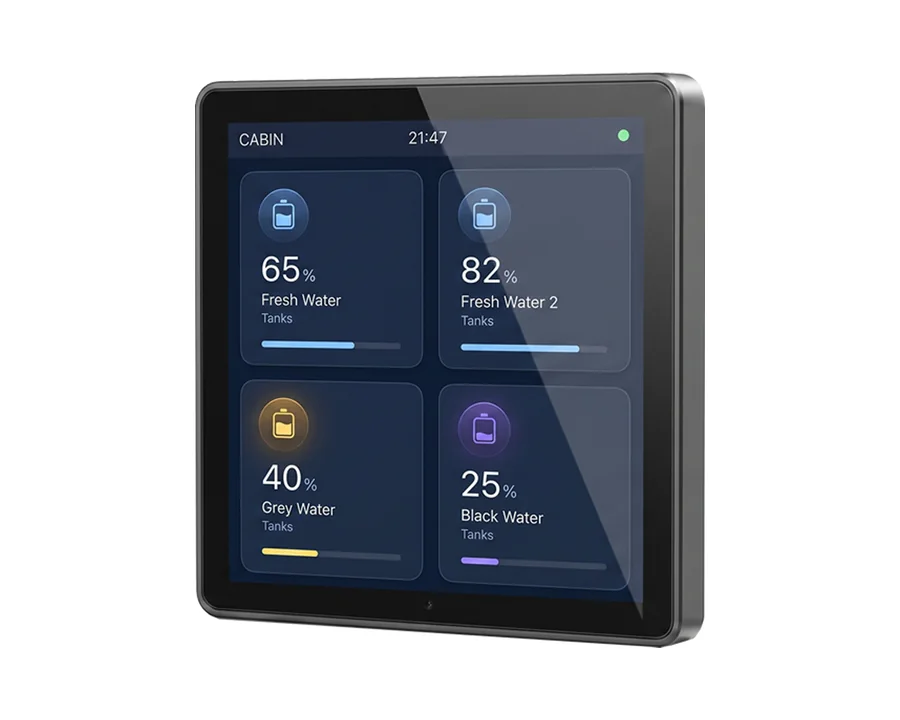

Quasar Glass 4 touchscreenA 4-inch, 480 × 480 touchscreen that talks to STAR-Light directly over Bluetooth. Each channel appears as a named tile that shows its confirmed state. Runs from a 9 to 24 V DC supply.× 1
Quasar Glass RouterThe connection between Glass and your phone. Runs from a 9 to 36 V DC supply.× 1

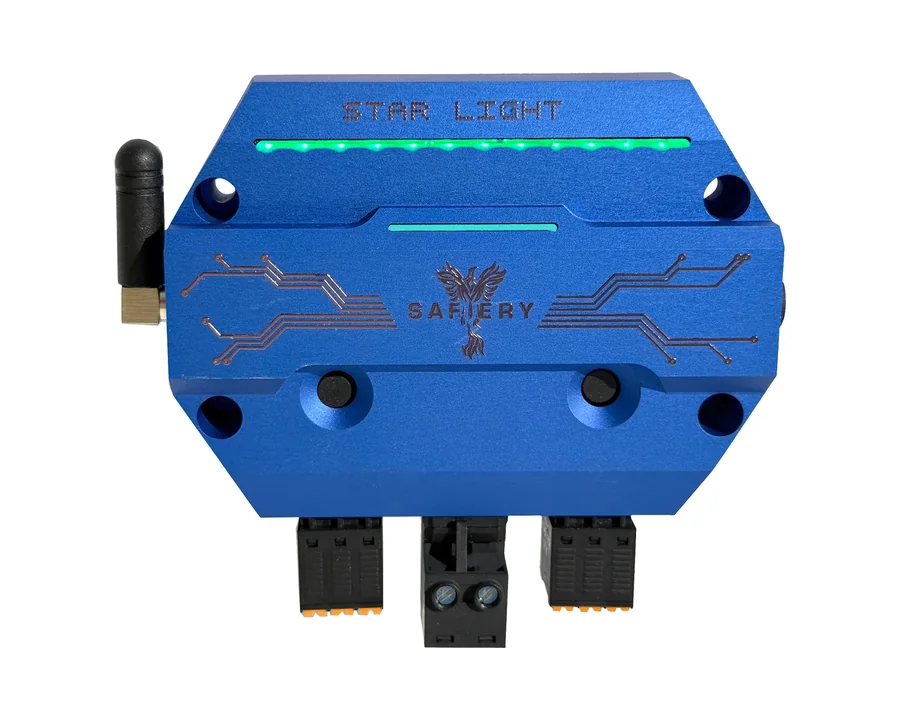

STAR-Light switching controllerTwelve channels at up to 10 A each, 40 A across the controller. Channels 1 to 4 and 9 to 12 dim. Runs from 10 to 32 V DC.× 1
Also in the box: a quick-start card. The lights, pumps and accessories, fuses and installation wiring are not included.
Glass Control, as one package
Customise Glass ControlMake it yours
Built around your circuits
Start with STAR-Light, then add another controller where your circuits need more channels. Add STAR-Tank sensors, wireless switches, cameras or another Glass panel as your system grows.

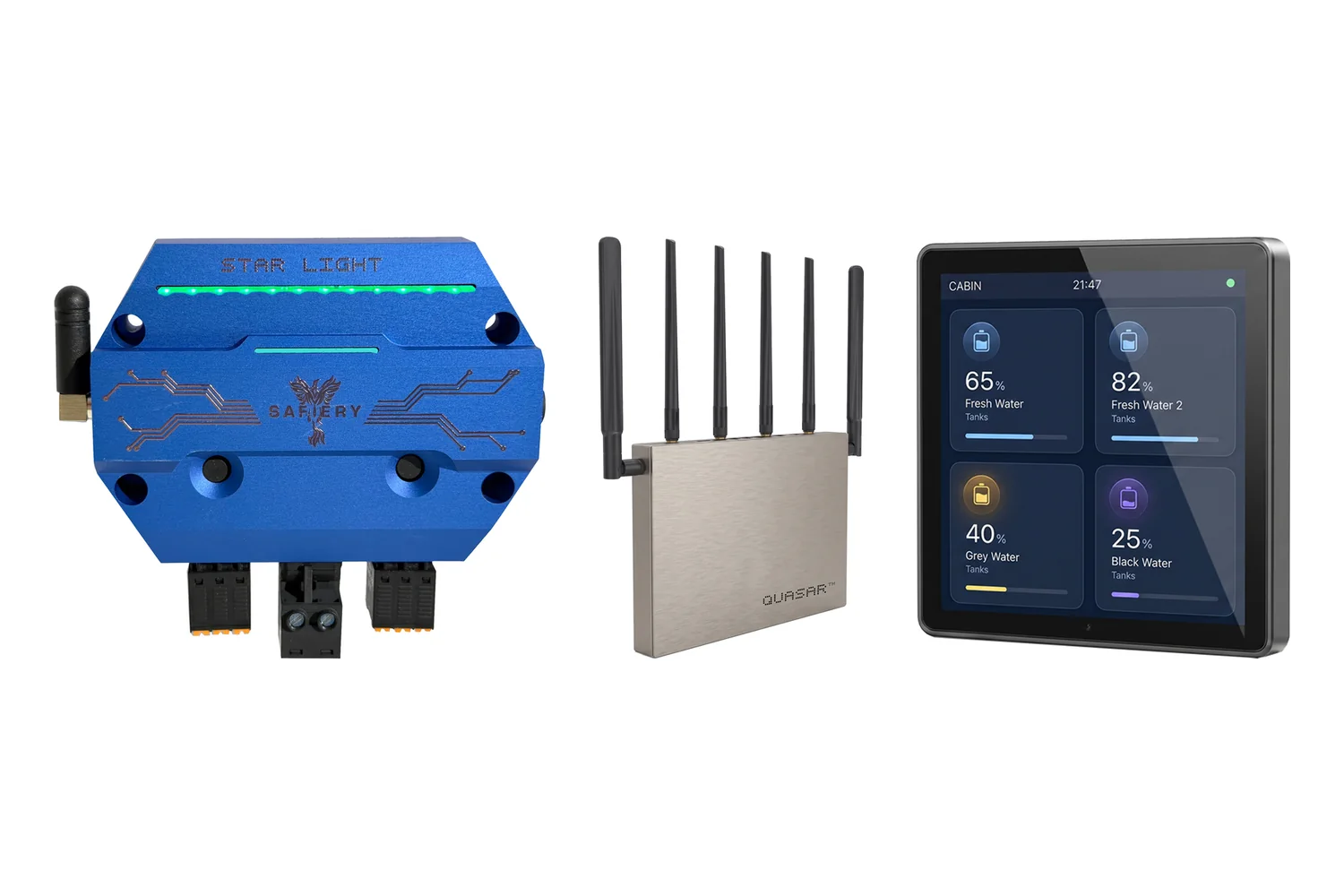

Glass Control: 1 × Quasar Glass 4 touchscreen, 1 × Quasar Glass Router and 1 × STAR-Light switching controller.
The customiser needs JavaScript. To add controllers, tanks, switches or cameras, email sales@safiery.com.
How it connects
Wired for power. Wireless for data.
Two kinds of line
Every load still has a wire
Each light, pump and accessory is wired to its own STAR-Light channel, and STAR-Light, the Glass Router and Glass are each wired to your 12 V supply. The wireless part is the data: STAR-Light talks to Glass directly over Bluetooth, and each tile shows the state STAR-Light reports back. The Glass Router is the connection between Glass and your phone.
- Solid orange is power, wired to each load and device.
- Dotted cyan is data: Bluetooth between STAR-Light and Glass, Wi-Fi between Glass and the router.
Wired to each load
Every circuit runs from its own STAR-Light channel: up to 10 A a channel and 40 A across the controller. STAR-Light runs from 10 to 32 V DC, the Glass Router from 9 to 36 V and Glass from 9 to 24 V.
Straight to Glass
STAR-Light talks to Glass directly over Bluetooth, so a tap never passes through the router. The Glass Router is the connection between Glass and your phone.
The tile shows what STAR-Light reports
A tile changes when STAR-Light reports the channel's new state, so the screen and the circuit agree.
Grow beyond switching
Add to the same system
Each of these works with the system Glass Control starts. Add them when you customise, or later.
STAR-Light switching controllerTwelve more channels, each on its own tile on Glass.Add
STAR-Rover-4 controllerFour 15 A channels, and the CAN connection the TPMS receiver and inclinometer are read through.Add
STAR-Tank Water radar sensorOne radar sensor per tank, for fresh, grey or black water. Each level appears as a tank tile on Glass.Add
STAR-Tank Fuel radar sensorOne per diesel tank. It reads from a metal reflector plate at the bottom of the tank.Add
STAR-Switch SP4 wireless switchA backlit wireless wall switch for any room, powered from 12 V. Glass shows each press.Add
STAR-Switch Quad wireless switchA four-button wireless switch on a coin cell, with no wiring to the switch.Add
Quasar Glass Wi-Fi cameraA dual-band camera matched to your kit, shown on Glass.Add
Another Quasar Glass 4 panelA second screen for the galley, the dash or the bed.Add
CAN TPMS receiver with five wheel sensorsTyre pressure and temperature at every wheel on Glass, read through a STAR-Rover-4.Add
CAN inclinometerA live incline view on Glass, read through a STAR-Rover-4.Add
Questions
Before you buy
How many circuits can Glass control?
Glass Control starts with STAR-Light's twelve channels, each on its own tile on Glass. Add another STAR-Light for twelve more, or a STAR-Rover-4 for four 15 A channels; each controller's channels appear on Glass too.
Which channels dim?
Channels 1 to 4 and 9 to 12, eight of STAR-Light's twelve. Channels 5 to 8 switch on and off. Put the lights you want to dim on a dimmable channel and the pumps and other on/off loads on the rest.
Do I need internet for it to work?
No. STAR-Light talks to Glass directly over Bluetooth, so switching needs no internet connection. The Glass Router is the connection between Glass and your phone.
Can I use STAR-Power instead of STAR-Light?
Not as a configured Glass Control bundle. STAR-Power is built for higher-current loads; tell us about your circuits and we'll check a STAR-Power system with you before you order.
What if I don't want the Glass Router?
The router is the connection between Glass and your phone, and every Glass Control system includes it. For Glass without a router, choose Glass Solo: Glass on its own, a standalone display for compatible Bluetooth equipment.
Can I change what is included?
Yes, around a fixed core. Every Glass Control system has Quasar Glass 4, the Glass Router and one STAR-Light. You can add controllers, tanks, switches, cameras and panels, subject to compatibility requirements.
Why do most bundles include the Glass Router?
The Glass Router is the connection between Glass and your phone. Glass Solo does not include it because Solo is designed as a standalone local display.
Does the router provide a digital twin?
No. The router connects products; it does not create the Quasar ONE digital twin. Digital-twin, system-health and predictive-service features belong to a separately defined Quasar ONE service.
Can Glass control Victron products?
Compatible Victron Bluetooth broadcasts can be displayed, but that Bluetooth path is read-only. Any control capability must be explicitly supported by the selected connection and product configuration.
Do wireless products still need power wiring?
Yes. Wireless describes the data connection. Displays, controllers, chargers and electrical loads still require appropriate power wiring and installation.
Talk to an engineerNot sure how your circuits fit STAR-Light's channels? Tell us your loads and we will check the plan with you before you buy.Email sales
Trade pricingInstallers and dealers see their own pricing across the catalogue once signed in.Trade account
Warranty and supportWarranty terms, RMA and returns are handled directly by Safiery.Warranty and RMA
Put your 12V system on real glass.Quasar Glass 4, the Glass Router and STAR-Light, built around your circuits.
Customise Glass Control
