Fishing Boat Lifestyle, Power and Convenience
We are an Australian company designing & building power conversion, energy and wireless digital switching devices. We tackle the really hard stuff that others just can’t do, for the mobile lifestyle.
Compact Compliant Lithium
Cutting-edge IP66 Lithium batteries that plug together or Solid State stackable lithium in the highest density.
Advanced Digital Switching
Control from 7in touch screen, wireless or waterproof rubberised switches, or your smartphone. Fully cyber security compliant!
Complete Power Packages
Integrate solar and alternator charging in an efficient way with smart control yest still have redundancy.
Biggest Engine Charging
Our DC DC’s will extract up to 3000W. Then add the synchronous hybrid alternators to a second mount for an additional 5-10kW of power.
Range of Options for high power from engines - 36V Charging
When you want to fish all day with the 36V motor running non-stop… you need replenishment energy. Thats what we deliver. There is nothing in the market that can deliver the range of power and energy for a fishing boat.
There are several “New Energy” options available to you:
Scotty AI running on Fishing Boat with Gyro Air-con and Induction Hob Listen to Sea trial Results
Single Unified Power System 36V MinKota Battery 48V House and Twin Scotty 1500w and 1,000Ah Lithium
Hooker 6.7 Center Console 36v system Walk through showing Solar & Smartphone Geofencing

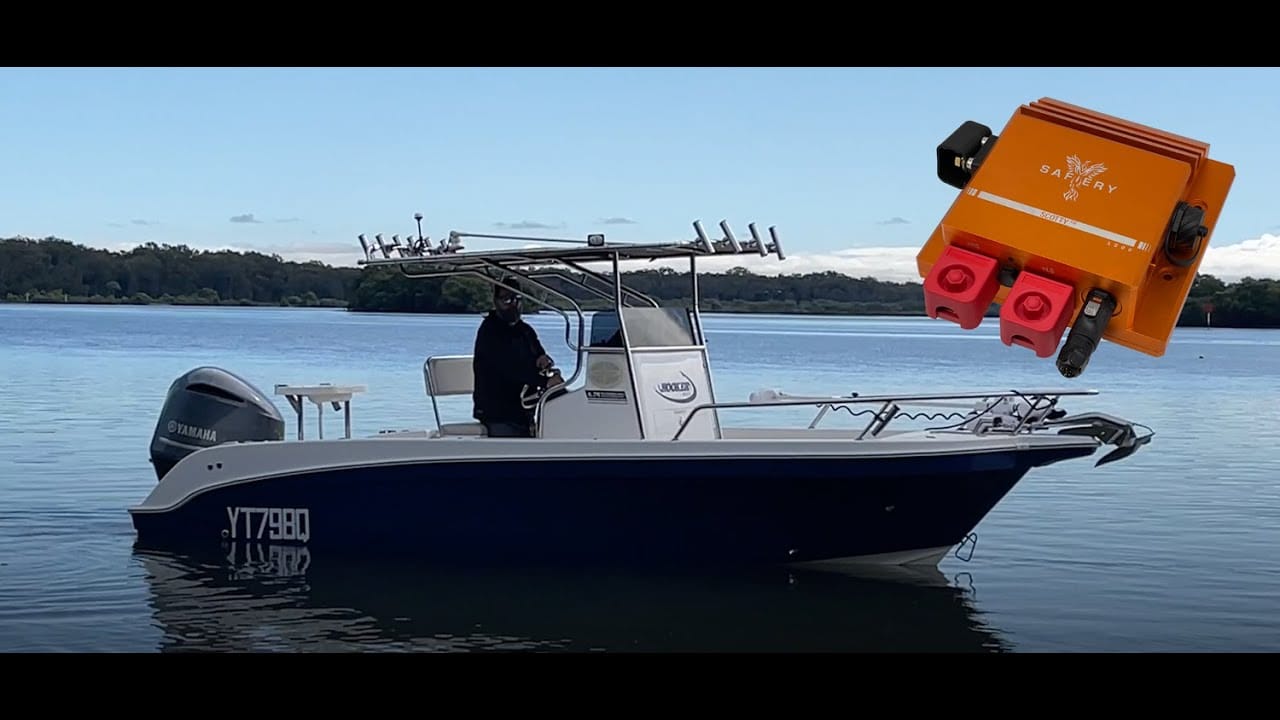

Hydrospeed with Minn Kota 36V powered by Scotty with 12Volt to 36V charging and then in reverse
36v Lithium Is only House Battery for this boat with a 12V 3000W Inverter Charger by using Scotty
digital SWITCHING SIMple to Use - But Open to AI in future
Customers wanted a digital switching system that is so easy to install and use. Some wanted to operate only with switches, others touch screens and then others to use a phone app. Safiery have all these forms of control plus automation right from your smartphone. The simplicity is that all these communication paths go directly to the STARSHIP controller reducing the cost.
DAME Award Finalist 2024 Metstrade Amsterdam

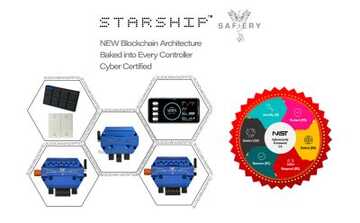

Why STARSHIP is so Compelling for the Future 1) - A Protected Eco-System with Blockchain Enryption at every module.
When we say “Block Chain Encrypted”, it means the highest level of Cyber protection is in place AT THE MODULE LEVEL.
Why STARSHIP is so Compelling for the Future 2) - Collaboration with Multiple other devices ina Smartphone IOT Open system
Why STARSHIP is so Compelling for the Future 3) - Energy Management at the Next Level and all in Your Control.

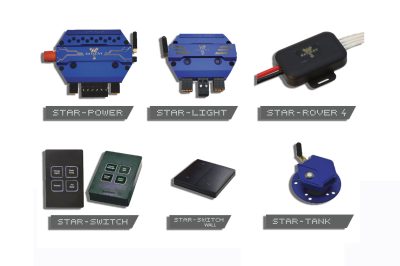

STARSHIP Controllers and Switches
Cyber Blockchain Encryption is baked into every STARSHIP controller.
Safest Lithium Batteries Available with 10,000 Cycle Life
This is THE Ultimate in Lithium batteries because of it’s incredible safety and long cycle life of 10,000 cycles.
Safiery have fitted the same Victron and Marine compliant BMS that has been used in the Meteor battery range that shows min/max cell voltages and temperature.
420mm L x 250mm H x 150mm D about 20kgs
Secrets Revealed - well not all!
Solid State Lithium Battery 12V 200Ah 48V 50Ah Safest in Market 10,000 Cycles 2500W charge/Discharge
How Solid State is different to standard lithium
The traditional liquid lithium battery is called a ‘rocking chair battery’ by the scientific community because of its charging and discharging principle. The two ends of the rocking chair are the positive and negative poles of the battery, and the middle is the liquid electrolyte. Lithium electrons move back and forth across the two ends of the rocking chair and complete the charge and discharge of the battery during the process. In this process, there are many safety hazards: if there is overcharging, the battery is prone to heat, causing the electrolyte to swell, decompose, spontaneously ignite or even explode. The charging and discharging principle of a solid-state battery is the same as that of a liquid battery. The only difference is that its electrolyte is solid, which has many advantages over liquid electrolytes:
Benefits of Solid State Lithium
1) Higher Safety: The liquid electrolyte in traditional batteries creates safety hazards if over charging or electrical abuse. The result is thermal runaway and fire. Solid-state batteries have higher safety without this electroyte mass.
2) Higher Cycle Life: Because solid-state batteries use solid electrolytes, the cycle life is doubled. A minimum of 10,000 cycles at 80% depth of discharge is expected.
3) High energy density: As solid-state batteries use solid electrolytes, they do not need to use lithium-intercalated graphite anodes, but directly use metal lithium as the anode, which can reduce the amount of anode materials and increase the energy density of the entire battery.
4) Smaller size: The separator and electrolyte in the traditional liquid lithium battery account for nearly 25% of the entire battery mass. With the solid electrolyte, the distance between the positive and negative electrodes can be shortened to ten micrometers. The result is smaller battery dimensions and better quality control.
5) Lower temperature Range: Solid State Lithium is less affected by freezing temperatures because of the solid layers.
6) High Discharge rate:Solid State Batteries can discharge up to 10C. However, the BMS current rating limits discharge rates to 1C Continuous and 2C for 10 secs.
Safety Specification of Solid State Lithium
SAFETY SPECIFICATION
- CAN BE CHARGED AT TWICE NORMAL VOLTAGE
- CAN BE SHORT CIRCUIT FOR EXTENDED 60 MINS
- CAN SUSTAIN HEAT TO 130C
- CAN BE CRUSHED TO 200KN
- CAN BE PENETRATED BY 8mm NAIL at 25mm/s
Stackable Batteries with concealed Interconnection Strap

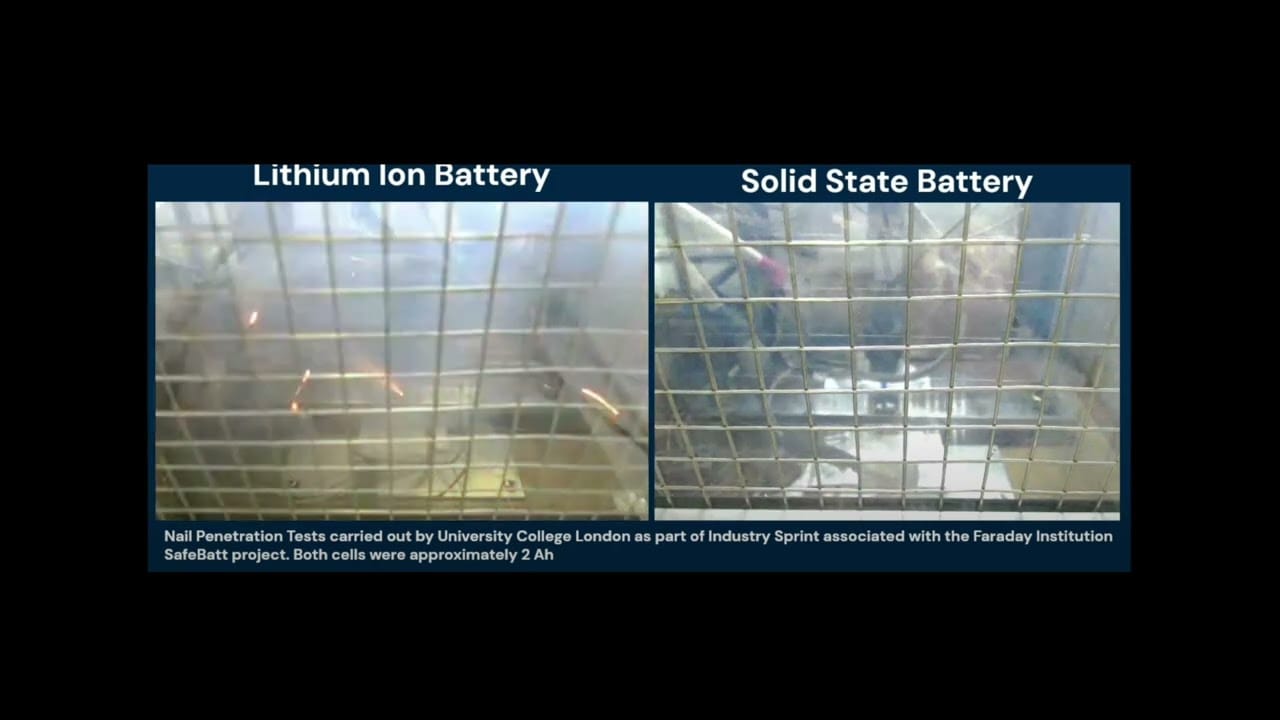

Nail Penetration test Solid State Lithium by University College London September 2024
Marine Compliant BMS on Victron Display showing Call and Temperature Min/Max
Meteor and Solid State share the same Safiery BMS that is our own design. This BMS displays the details of all the batteries connected to a Victron GX display. Read below why our BMS is so special!
Why the Safiery BMS is different to most yet is compliant with Marine Regulations
After 100’s of lithium systems with a variety of BMS’s, we determined the shortfalls in nearly all of them when there is an extreme scenario. We then designed our own BMS and used it first up in Meteor battery range. It has been a huge success. Here are the design points that make it quite different:
Current sense is less than 0.1A at 48V.
When you put a large bank of batteries together, low loads are shared between the batteries. If the current sense resolution in each battery is say 0.5A, then 10 batteries in an array wont measure outgoing power till 5A at 48V is reached. The quiescent DC power for most Victron Systems is around 12W with modem and screen connected. The standard BMS will fail to read this. The Safiery BMS will read it down to 0.1A per battery.
BMS Cut Off voltage is just below 0% SOC
On the surface, this seems quite sensible. If the BMS doesnt turn off, it will continue to drain the battery. However, if it does turn off, then recovering a flat battery safely with BMS fully functional is so important. Otherwise batteries have to be disassembled and cells charged independently.
The Safiery BMS turns off around 8VDC. Ina typical 48V battery there is around 2-3 weeks before this will fully drain the battery. However, when the customer becomes aware of the flat battery bank, Scotty AI or an AC charger can recover the bank safely to 100% health. This small change eleiminates the majority of calls for “help” from owners without it.
Stop charge a Marine Regulatory requirement that has a problem with Victron Compliant BMS unless they follow this exact guideline from Victron
Victron compliant BMS guidlines call for just 3 parameters to share on the CAN BMS. Charge Voltage Limit, Charge Current Limit and Discharge Current Limit.
Most (nearly all) the BMS’s we have used in the past send a zero value for the charge current limit to “Stop Charge”. The problem is Victron does not always respond promptly to this command. The Victron External BMS commands respond immediately to voltage though. We had a horrific experience with this when a high power solar bank continued to charge the 48V batteries for 15 minutes after the BMS had issued a zero Charge Current Limit. That was on a catamaran. Lesson learned.
Safiery’s BMS sends a zero Charge Current Limit to Victron some 3-5 mins before the battery relay may open. Then 1 minute before the battery relay may open it reduces the Charge Voltage Limit and Victron responds perfectly. The timing to reopen is internal information. It has taken more that 5 firmware revisions when testing to perfect this.
In the next accordion block is an on-line review of a customer who went away (to Bali) for 2-3 weeks with the system on and no solar charging as the vehicle was moved to the garage.
Watch to see what happens. This is truly the best example to give confidence to customers to manage their sysems by them self, an absolute essential in marine.

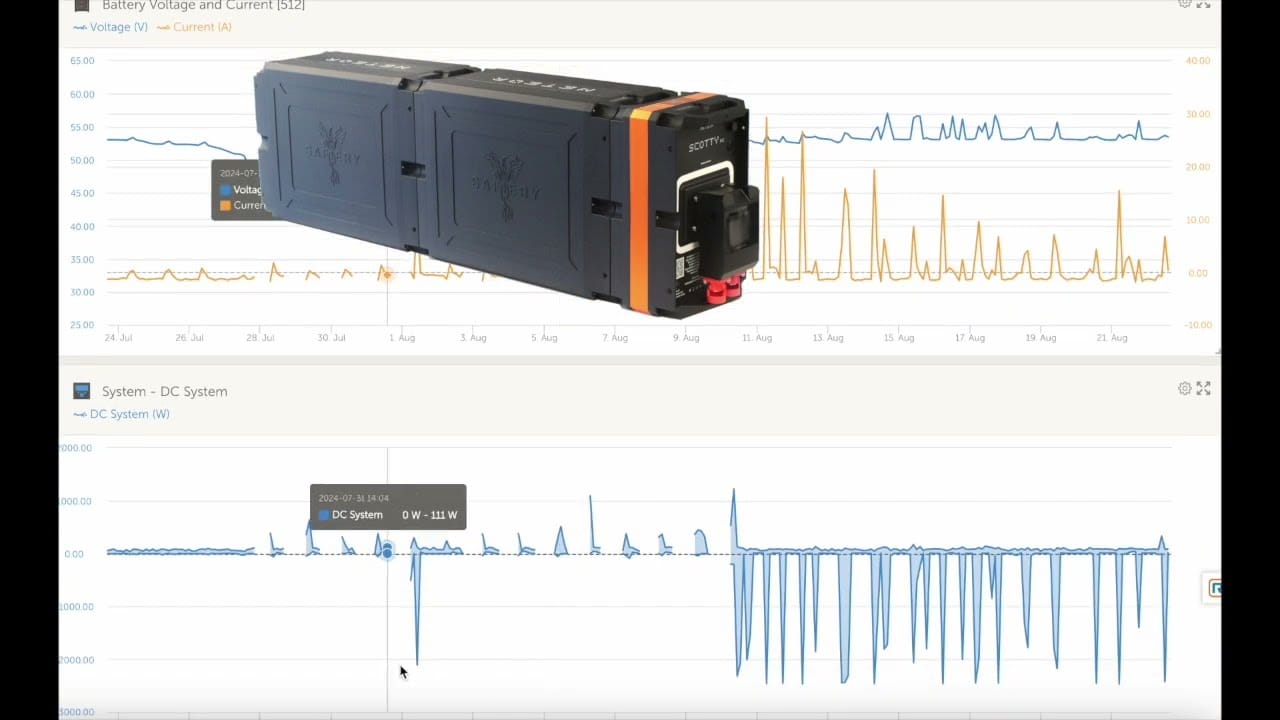

Recovering a flat 48V Safiery Meteor Battery with Scotty AI DC DC - dangerous with 48V Alternator.
Tank Measurement made easy
Tank measurement can be so troublesome. If you have a jack-off canopy, then even more so. This is why we developed a bluetooth battery operated radar tank level sensor.
It communicates directly with Victron Cerbo or if you dont have a Victron System then see it on the STAR-Touch 7 inch Display when you combin with STAR-Power.

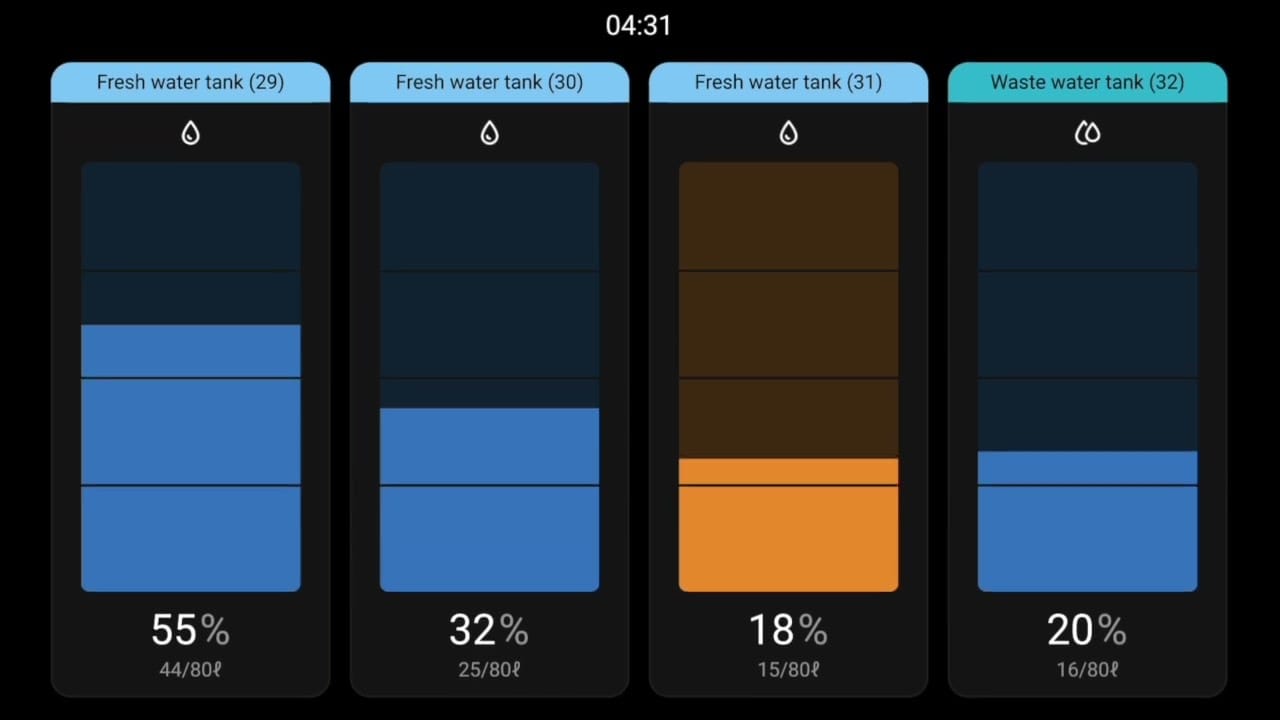

Victron Dark Display with 4 STAR Tank Showing
STAR-Tank Battery Operate Bluetooth

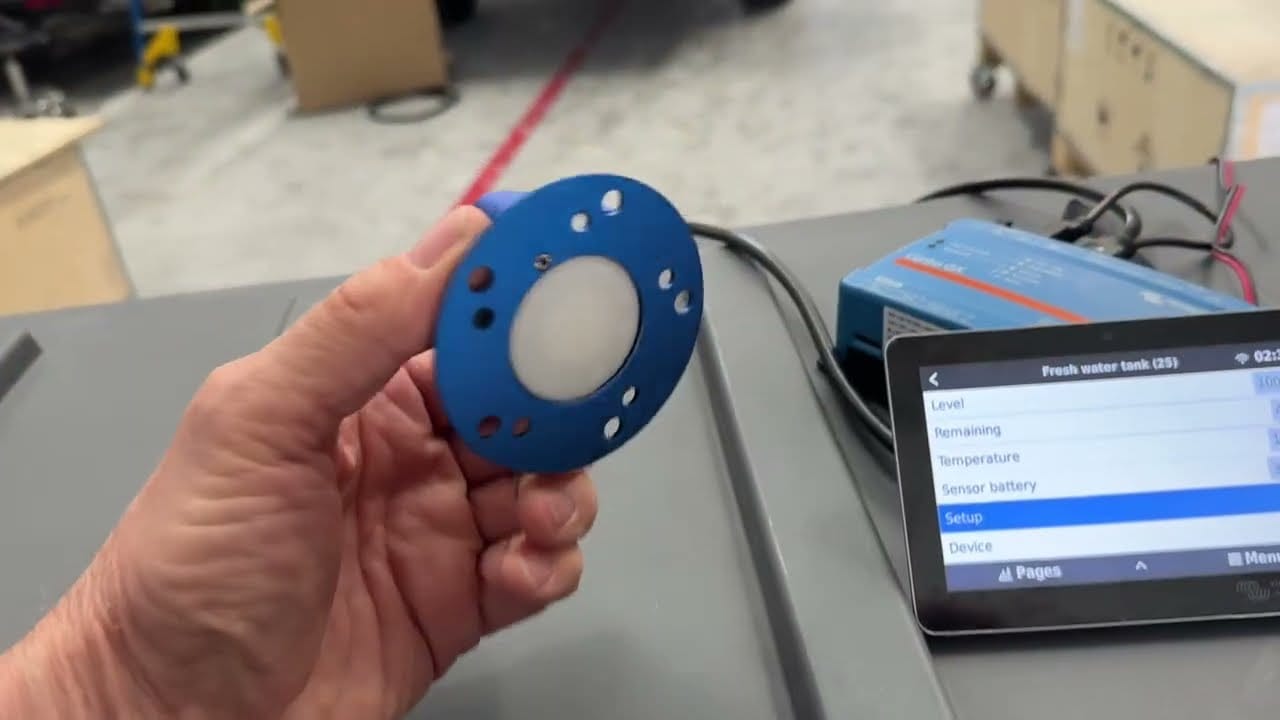

35m Range test of STAR-tank Battery Bluetooth links Victron GX black, grey, fresh water tanks

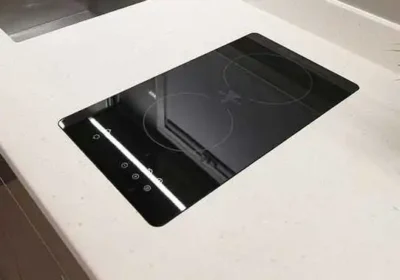

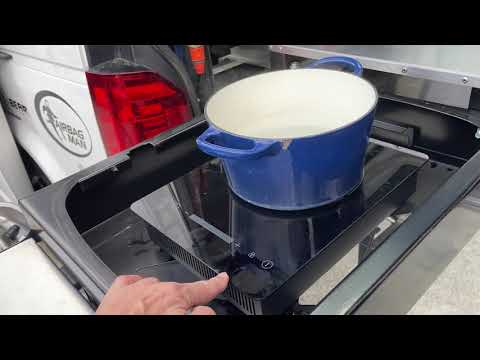

Double Induction - No Pulsing
- Induction cooking is 94% efficient. Compare to LPG at 40%.
- No need to clean the bottom of pot
- Now with precise control and smooth power dimming from as low as 400W.
- 1800W front Element and 1500W Rear Element
- Does not overload Inverter: Select Size 2000W or 3000W
Double Induction Cooking fresh Salmon
Double Induction Installed inside SLRV Camper
