48V Lithium or Sodium IP 67 Pluggable Battery.

Lithium is 2355Wh. Sodium is 1700Wh. Sodium is safe and good for - 30C. Sodium discharges up to 3C but is limited by BMS of 50A.

36V Lithium Available.

Run trolling motor battery as single house battery on fishing boat. Runs new Garmin 2400W Trolling Motor.

Integrate 12V with Scotty AI M.

Add Scotty AI M and get up to 1500W of charging from alternator and up to 1500W of discharge on 12V side. Safiery Meteor Battery Range Marine and RV Landscape

Plugable Batteries

This is a true plug-n-play battery system with no external terminals visible. It is IP 67 from head to tail. As a result it can be placed virtually anywhere that doesn’t get external impacts. Up to 5 batteries can be plugged togther with a positive plug connection one end and a negative at the other end. There is both a 36V or 48V bus plus a 12V bus inside along with the negative bus. Each bus has a rating of 150A continuous, 250A burst surge. There are up to 2 mega fuses located inside the positive end cap. One fuse for the 48V or 36V power, the other is for 12V when the optional Scotty AI M is installed.

48v Lithium

48V Lithium 2355Wh Capacity CAN BMS at 50A Victron Cerbo Compatible on VE.CAN interface. Battery is fixed at 250baud rate CAN BMS. Max Continuous Charge Rate is o.5C so about 1200W Max Continous Discharge is 1C so about 2400W

48v Sodium

48V Sodium Charges from -10C Discharges from -30C No thermal Runaway, Safe in IP67 Case. 1,700Wh Capacity CAN BMS at 50A Victron Cerbo Compatible on VE.CAN interface. Battery is fixed at 250baud rate CAN BMS. Max Continuous Charge Rate is 23A so about 1200W Max Continous Discharge is 3C but BMS has limit of 50A  so about 2400W

36v Lithium

36V Lithium 2355Wh about 55Ah Capacity CAN BMS at 60A Victron Cerbo Compatible on VE.CAN interface. Battery is fixed at 250baud rate CAN BMS. Max Continuous Charge Rate is o.5C so about 1200W Max Continuous Discharge is BMS 60A so about 2400W

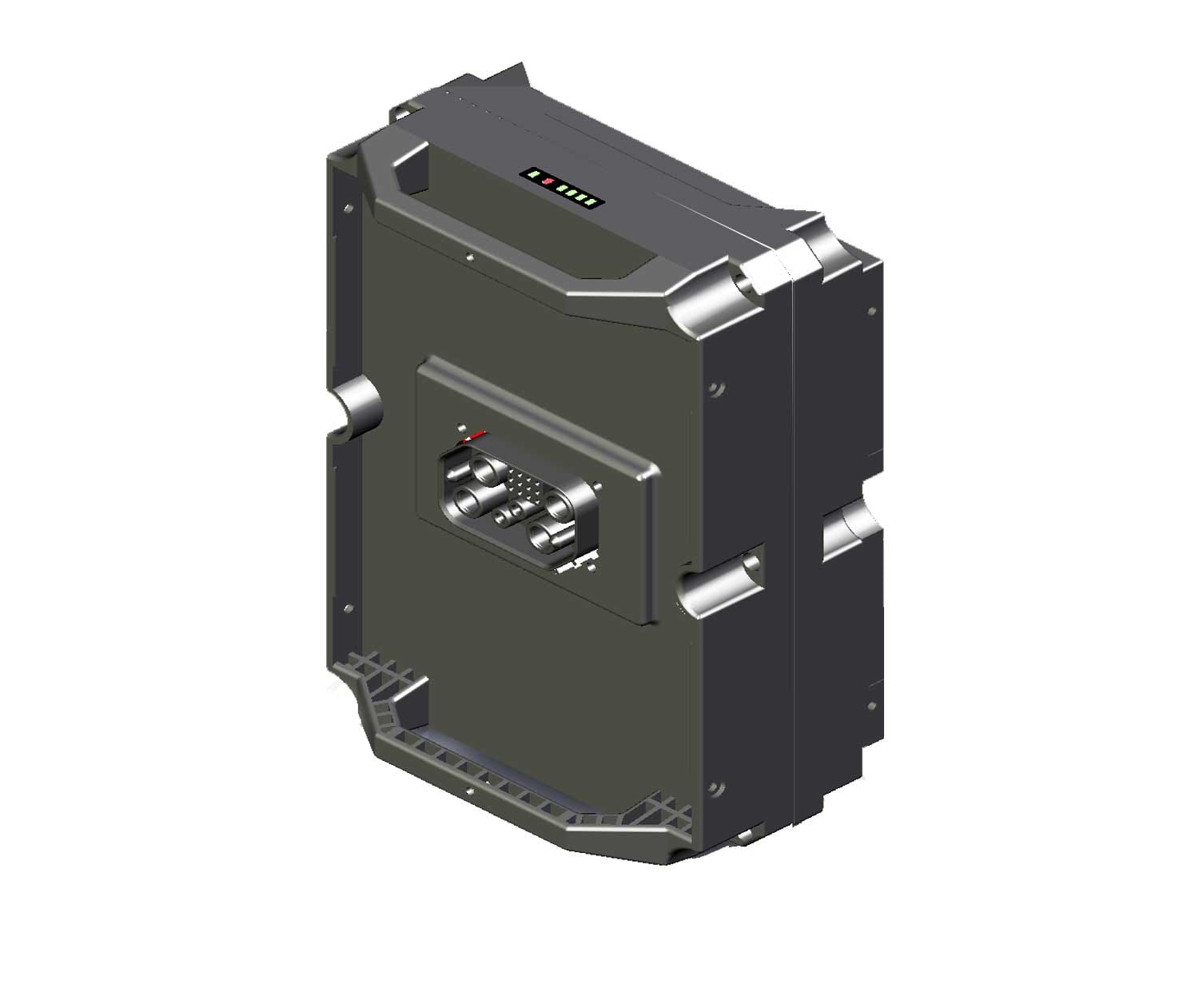

SCOTTY AI M

The Meteor Battery (either 36V or 48V Lithium of Sodium can have the optional Scotty AI M module plugged into the positive end of the battery set. It connects directly to the 12V bus and Mega-fuse (if fitted). The power conversion is bi-directional. If the 12V connection is made to the engine alternator capable of 150A then up to 125A of DC DC charged will automatically charge any of the Meteor batteries. If the engine alternator is less than 150A, don’t be concerned. Scotty AI uses its AI to auto-tune to any alternator. Its has soft, medium and hard selectors for charging at idle if being used as solar backup. The 12V connection can also be routed to all of the on-board 12V loads for 24/7 12V power available (proving the 36V/48V Meteor have sufficient capacity).

Meteor Positive Plug

Robust IP67 US Military Grade Plug. The critical component for a plug n nplay system is the connector. Each of the sockets for this connector are gold plated, spring fitted and rated to 150A continuous. The Connector has a rubber gasket seal around the plug with a tight 30mm push fit. There are 2 RJ45 connections, one for CAN based communication and one for searial communications to batteries placed side by side.
