STAR-Light Wireless 12 Channel 10A for 12V or 24V Device Integrates with Victron

Click on this image to see 24 second Video how easy to Install and Connect to Victron.

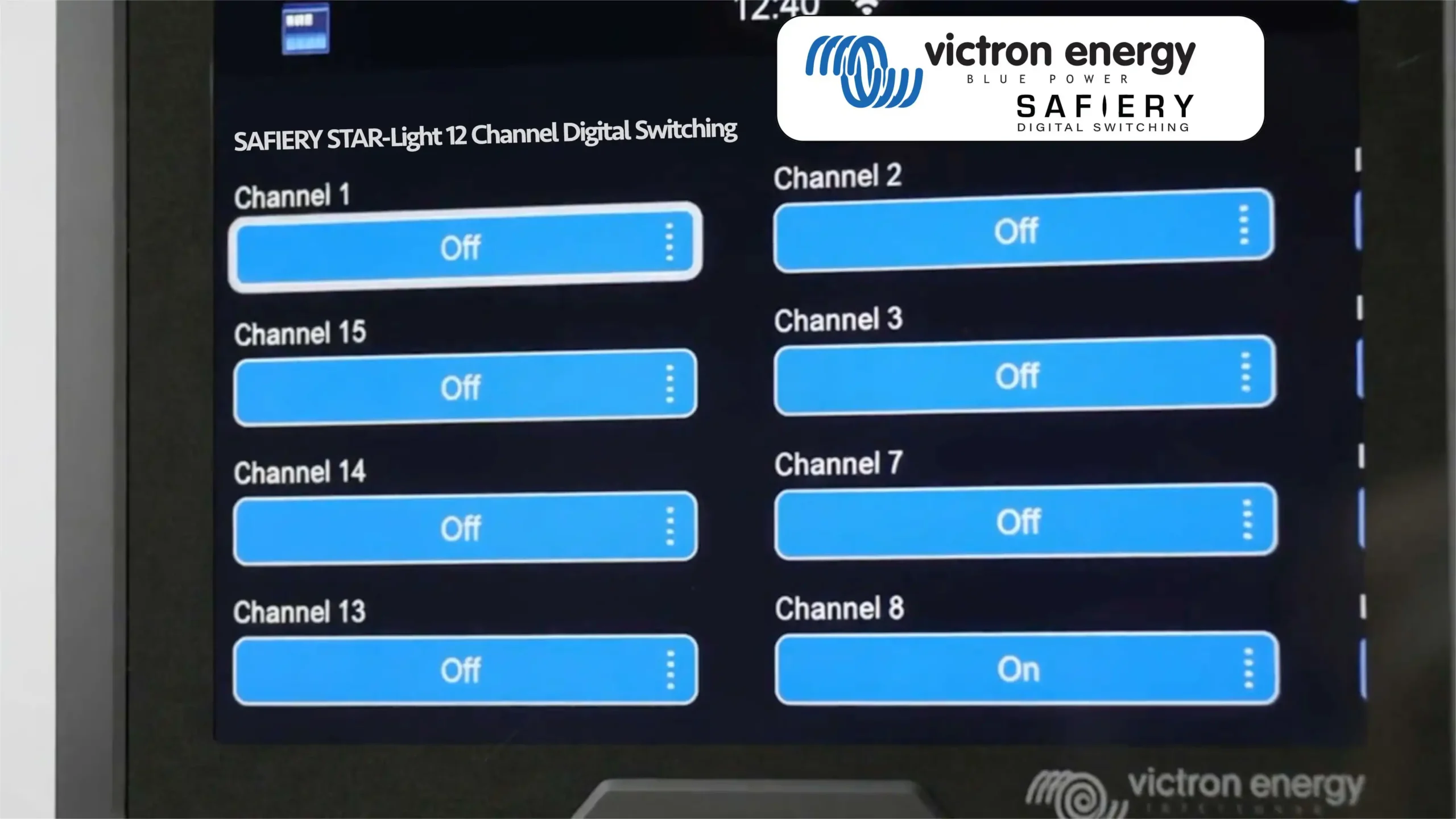

STAR-Light Wireless 12 Channel 10A for 12V or 24V Device Integrates with Victron from Venus OS 3.70

Just plug one cable into the VE.CAN port of the Cero or Ekrano and you are ready to start switching. Less than 30 seconds to connect. All Videos on 3.70 Beta.

Then you can switch in 3 modes: momentary, toggle or latched and dimming LED lights.

All in One 12 channel Digital Switching Power with Safety and Efficiency

For RV’s and the marine environment, it’s not uncommon to see a multitude of lighting and 12V device control wires at a single junction panel. The advent of digital switching systems reduces the space required and increases safety and reliability over traditional fuses and breakers. STAR-Light sports 8 x 10A dimmable channels and 4 x 10A fixed switching  at 12V or 24V. Max current combined in 40A continuous. Short circuit protection is at 80 millionths of a second protecting even the smallest of wires.

Wireless Communication from Switches and Touch Displays

Any channel can be switched by wireless switches, CAN/ NMEA switches, Touch Display. Up to 6 switches can be configured to operate any one STAR-Light channel. This gives near infinite possibilities for users with master and sub-master control easy to implement. Wireless switches significantly reduces installation time. Configuration is done on a Smartphone app. It also simplifies combining lights and devices in scene control. In the Marine environment, the NMEA variation means switch control from your favourite MFD.

Advanced Fuseless design plus on-controller backup.

For maximum safety, STAR-Light protects at the ultimate level. Short circuit protection occurs in 80 millionths of a second. The highest quality integrated hardware protected mosfets from Germany are used. This means that high in-rush currents can be allowed at 4 x nominal capacity whilst still having short circuit protection.

Advanced Flexible Dimming Modes

For lighting circuits, STAR-Light can dim LED’s up to 120W. This eliminates the need for duplicating high power work lights with softer evening lights. With our advanced STAR-switch circuits, STAR-power adjusts brightness levels to suit ambient needs, making your life easier and more convenient.

STAR-Light can operate true RGBW channels as one coloured light. You select the colour. With STAR Switches, double press changes from White to the selected colour.

Unbeatable Power to Size Ratio

In mobile environments, size matters. STAR-Light achieves 40A continuous 12v power in a 120 x 90 mm footprint and only 30mm deep. The alloy billet machined anodized case dissipates heat. Wiring to devices is plug-n-play. No fusing is required. The NMEA connection is isolated. 12 devices to 10A can be switched.

• Multi-channel Secure Wireless, MQTT over WiFi, Long Range Bluetooth and Thread with 802.15.4
• WIRELESS CHANNELS WORK SECURELY AND IN HARMONY WITH CAN OR NMEA CONNECTIONS.
• 12 x 10A Channels, 8 can be dimmable LEDs
• Switch from a single button on any STAR-switch or STAR-touch device.
• Up to 6 switch buttons can control one device

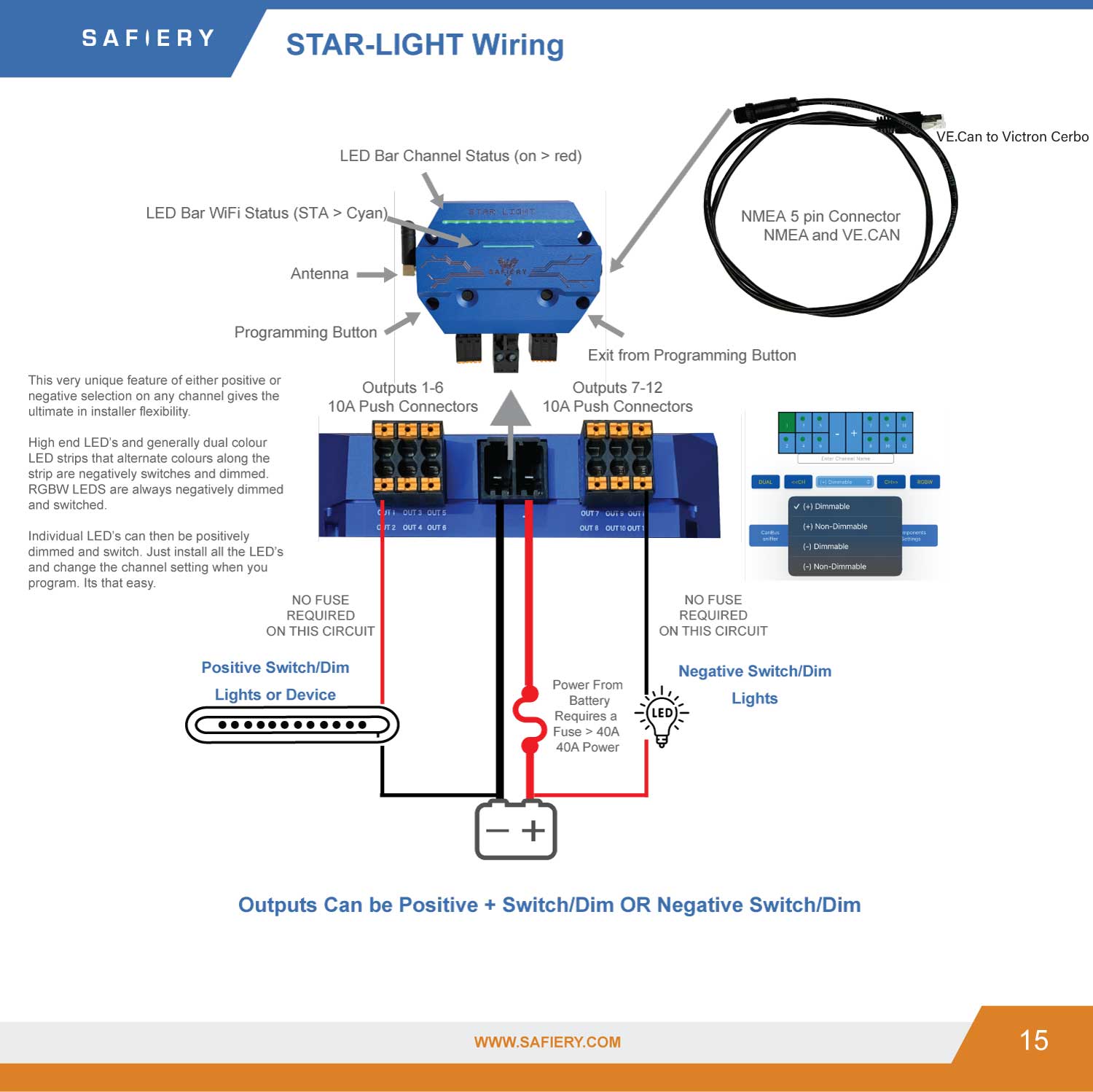

• Any channel can be positively assigned or negatively assigned. This gives huge flexibility for the installer.
• No fuse required, high speed MOSFET control with current limiting and short circuit protection in 80 millionths of a second.
• Up to 40A Max for complete STAR-Light at any one time.
• Phoenix Plus with locking clip power connector 41A Continuous.
• 6mm2 Wire connecting Plug rated at 41A.
• 12V or 24V powered

Product dimension:
118mm x 103mm x 29mm/48mm
Length   x  Width   x Height/Antenna Height

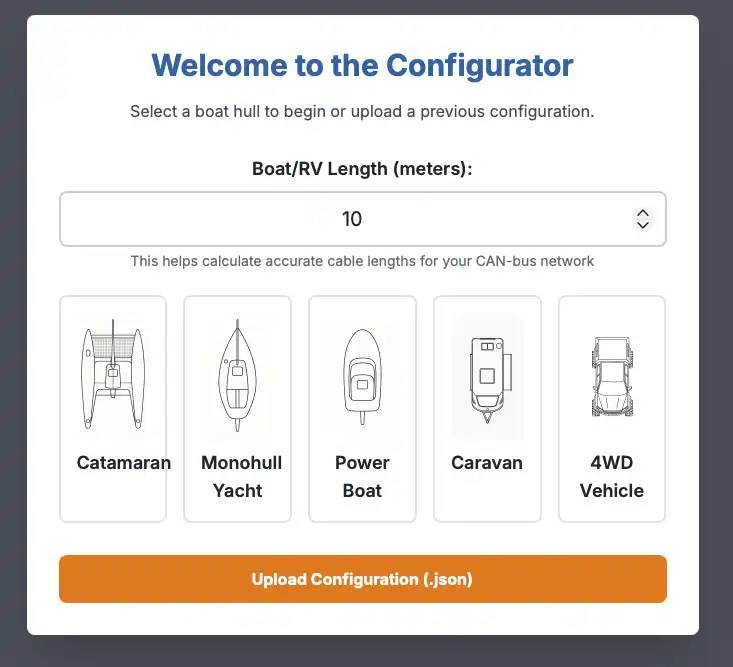

Click on this image to see Video on STAR Ai Configurator for Marine and RV's and Connect to Victron.

.

.

Then Go Here to Configure your 4WD, RV or Boat with STAR Devices.
The parts list, cabling and wiring are auto-generated.
