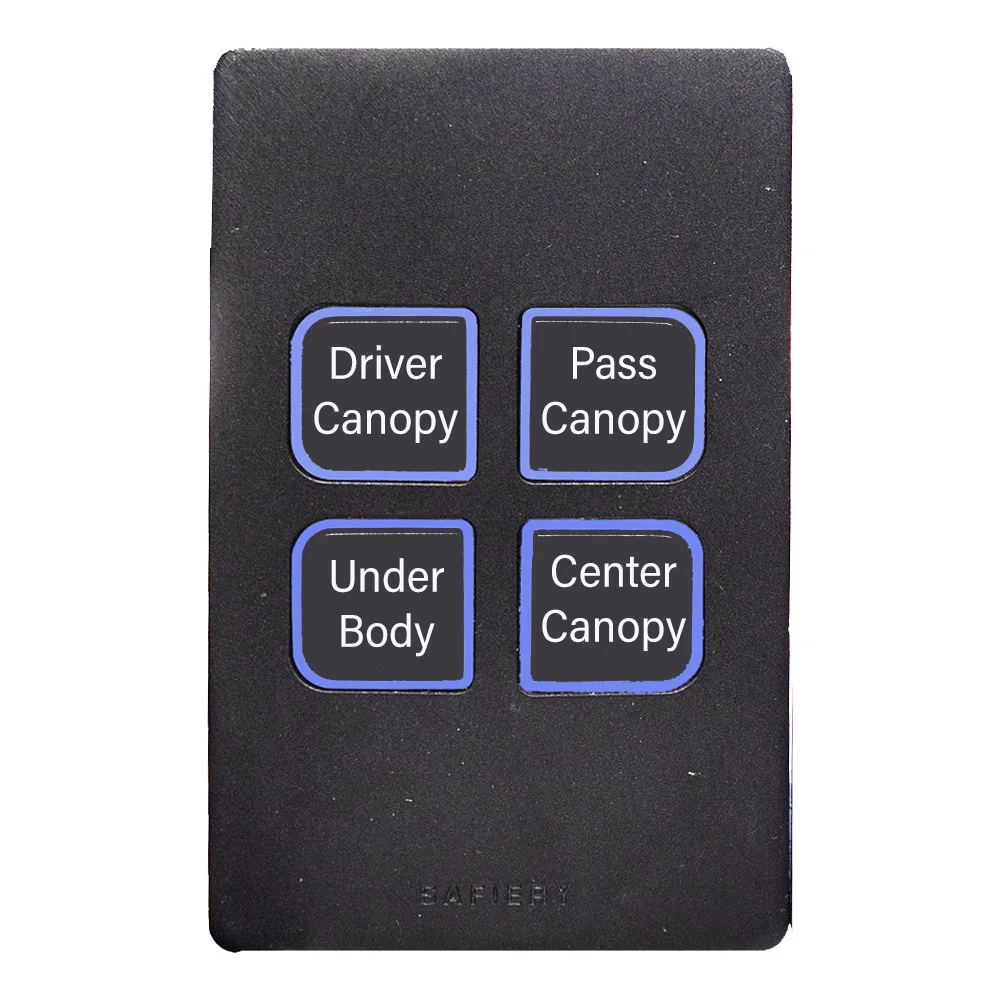

STAR-switch SP4 Wired 4 Button Switch CAN 12V

SKU STAR-switch-SP4-wired-CAN Category STARSHIP Digital Switching System

AUD187.00

Available on backorder

FOUR BUTTON 12V WIRED SWITCH

Each Button	Individual LEDs	Dual Colur LED Strips	RGBW LED Strips
Button 1	LED 1	Channel 1 White	Channel 1 White
Button 1	LED 2	Channel 2 Amber	Channel 2 RGBW colour
Button 2	LED 3	Channel 3 White	Channel 3 White
Button 2	LED 4	Channel 4 Amber	Channel 4 RGBW colour
Button 3	LED 3	Channel 5 White	Channel 5 White
Button 3	LED 4	Channel 6 Amber	Channel 6 RGBW colour
Button 4	LED 3	Channel 7 White	Channel 7 White
Button 4	LED 4	Channel 8 Amber	Channel 8 RGBW colour

Any button can also control STAR-control 8 devices 35A each to 150A total.

STAR-switch showing 3 switches as multiple switch

If RGBW LED’s are chosen then select the second colour to cool white using the on-device colour wheel selector.
Then from a single button: Press once to control and dim the white colour, press the same button twice to switch to the alternative colour to control and dim.
Provision with the provisioning selector on-device for up to 6 remote switches to activate the LED.
Use a single remote switch as a master all on/off if required.
Mosfet controlled and fuseless to LED’s
Up to 90W per LED at 12V only
12V power and CAN connected. Can be operated by CAN wired switches and/or wireless BT switches.

STAR-light LED control from CAN wired and/or wireless switches

Safiery STARship ^TM Products and their Features

“The ultimate wired and wireless device control: switches, battery, temperature, tank monitoring from one or more touch displays."

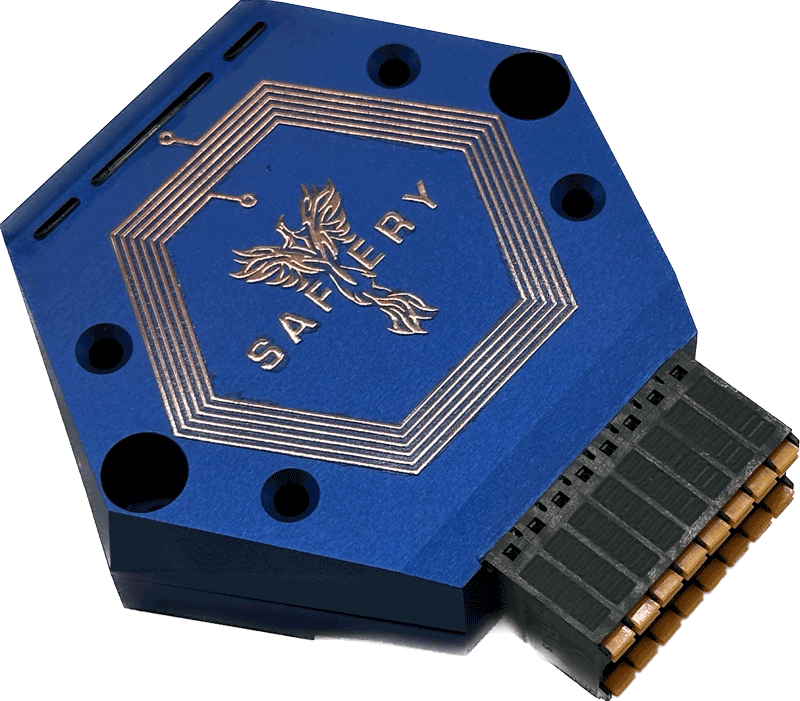

STAR-light
Up to Four LED Light Colours 4 LED’s one colour; 2 LED’s two colour; RGBW Either Positive / Negative Dim & controlRGBW On/Off/Dim… Colour-Change… fuse-less. 2 LEDs or White + colour controlled by One Button.	Up to 6 switches per LED/Devices	Touch Control & Status from one or more Displays
STAR-control
Eight control Devices 12V 35A each to 150A total. Backup control on device plus Fuse-less control.Current is measured so Status reported 3 reported states: off/on/fault	Up to 6 switches per LED/Devices	Touch Control & Status from one or more Displays
STAR-switch
4 button Switch Alloy housing Wired Press buttons backlit (not capacitive touch) 12V In; CAN out; Custom Engraving Each button can be in parallel to 6 way switching	Wired CAN and Wireless Bluetooth	Also on Touch Control & Status from one or more Displays
4 button Switch Alloy housing Battery 2-yrs Press buttons backlit (not capacitive touch) Bluetooth Out; Custom Engraving Each button can be in parallel to 6 way switching	Wireless Bluetooth	Also on Touch Control & Status from one or more Displays
Rubberized 8 button IP67 Wired Press buttons backlit (not capacitive touch) Three LED indicators: On/Off/Fault 12V In; CAN out; Custom Engraving Each button can be in parallel to 6 way switching	Wired CAN	Also on Touch Control & Status from one or more Displays
STAR-touch
Compact 45mm Round Touch Display Integrated all in one device	Wired, CAN
Ultra-flat 5mm 4 in Surface Mount Touch Display Integrated all in one device	Wired, CAN Wireless BT
7 inch Panel Mount Touch Display Integrated all in one device	Wired, CAN Wireless BT
STAR-tank
Wired Tank Sensor Phased Coherent Radar Technology 12/24V in; 0-5V out; CAN out; Bluetooth Out Suits fresh/grey/black water or diesel	CAN plus 0-5V output to suit Victron Tank 140 & Simarine	Touch Calibrate & status
Battery Tank Sensor Phased Coherent Radar Technology Bluetooth Only Out Suits fresh/grey/black water or diesel	Bluetooth Model	Touch Calibrate & status
STAR-temp
Battery operated Ruuvi Puck Range Bluetooth Out Reading directly into STARship system Suits fridge plus IP65, IP67 locations	Bluetooth	Touch & status
STAR-solo
Wired Victron Cerbo Interface RJ45 connection to Internet port on Cerbo 12/24V in; CAN in/out; Bluetooth in/out Two Way Control of all available registers in Cerbo	TCP/IP CAN Bluetooth	Touch Control & Status

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Description

FOUR BUTTON 12V WIRED SWITCH

Each Button	Individual LEDs	Dual Colur LED Strips	RGBW LED Strips
Button 1	LED 1	Channel 1 White	Channel 1 White
Button 1	LED 2	Channel 2 Amber	Channel 2 RGBW colour
Button 2	LED 3	Channel 3 White	Channel 3 White
Button 2	LED 4	Channel 4 Amber	Channel 4 RGBW colour
Button 3	LED 3	Channel 5 White	Channel 5 White
Button 3	LED 4	Channel 6 Amber	Channel 6 RGBW colour
Button 4	LED 3	Channel 7 White	Channel 7 White
Button 4	LED 4	Channel 8 Amber	Channel 8 RGBW colour

Any button can also control STAR-control 8 devices 35A each to 150A total.

If RGBW LED’s are chosen then select the second colour to cool white using the on-device colour wheel selector.
Then from a single button: Press once to control and dim the white colour, press the same button twice to switch to the alternative colour to control and dim.
Provision with the provisioning selector on-device for up to 6 remote switches to activate the LED.
Use a single remote switch as a master all on/off if required.
Mosfet controlled and fuseless to LED’s
Up to 90W per LED at 12V only
12V power and CAN connected. Can be operated by CAN wired switches and/or wireless BT switches.

Safiery STARship ^TM Products and their Features

“The ultimate wired and wireless device control: switches, battery, temperature, tank monitoring from one or more touch displays."

STAR-light
Up to Four LED Light Colours 4 LED’s one colour; 2 LED’s two colour; RGBW Either Positive / Negative Dim & controlRGBW On/Off/Dim… Colour-Change… fuse-less. 2 LEDs or White + colour controlled by One Button.	Up to 6 switches per LED/Devices	Touch Control & Status from one or more Displays
STAR-control
Eight control Devices 12V 35A each to 150A total. Backup control on device plus Fuse-less control.Current is measured so Status reported 3 reported states: off/on/fault	Up to 6 switches per LED/Devices	Touch Control & Status from one or more Displays
STAR-switch
4 button Switch Alloy housing Wired Press buttons backlit (not capacitive touch) 12V In; CAN out; Custom Engraving Each button can be in parallel to 6 way switching	Wired CAN and Wireless Bluetooth	Also on Touch Control & Status from one or more Displays
4 button Switch Alloy housing Battery 2-yrs Press buttons backlit (not capacitive touch) Bluetooth Out; Custom Engraving Each button can be in parallel to 6 way switching	Wireless Bluetooth	Also on Touch Control & Status from one or more Displays
Rubberized 8 button IP67 Wired Press buttons backlit (not capacitive touch) Three LED indicators: On/Off/Fault 12V In; CAN out; Custom Engraving Each button can be in parallel to 6 way switching	Wired CAN	Also on Touch Control & Status from one or more Displays
STAR-touch
Compact 45mm Round Touch Display Integrated all in one device	Wired, CAN
Ultra-flat 5mm 4 in Surface Mount Touch Display Integrated all in one device	Wired, CAN Wireless BT
7 inch Panel Mount Touch Display Integrated all in one device	Wired, CAN Wireless BT
STAR-tank
Wired Tank Sensor Phased Coherent Radar Technology 12/24V in; 0-5V out; CAN out; Bluetooth Out Suits fresh/grey/black water or diesel	CAN plus 0-5V output to suit Victron Tank 140 & Simarine	Touch Calibrate & status
Battery Tank Sensor Phased Coherent Radar Technology Bluetooth Only Out Suits fresh/grey/black water or diesel	Bluetooth Model	Touch Calibrate & status
STAR-temp
Battery operated Ruuvi Puck Range Bluetooth Out Reading directly into STARship system Suits fridge plus IP65, IP67 locations	Bluetooth	Touch & status
STAR-solo
Wired Victron Cerbo Interface RJ45 connection to Internet port on Cerbo 12/24V in; CAN in/out; Bluetooth in/out Two Way Control of all available registers in Cerbo	TCP/IP CAN Bluetooth	Touch Control & Status

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
