PICO one BATTERY MONITOR
AUD229.00AUD392.00
Sale!
PICO one BATTERY MONITOR
Simarine Pico display is a beautiful easy to use touch screen showing battery, tank, temperatures and pitch and roll angle.…
AUD229.00
AUD392.00
The PICO one is the perfect battery monitor solution.
The PICO One screen has the same display appearance as the PICO but it connects to only ONE data collecting device. Hence the name PICO One!

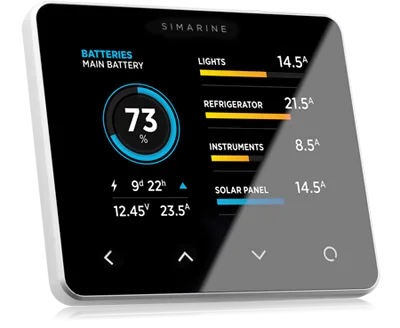

The battery monitor combines perfect functionality and simple operation with an outstanding design. Equipped with a 3.5″ LCD TFT screen, high-resolution IPS technology with high brightness, optimal color reproduction, wide viewing angles and a virtually indestructible Gorilla glass with anti-reflection coating, the PICO one is suitable for both indoor and outdoor installation.
PICO’s display unit is made of a sleek anodized aluminum casing and a thick Gorilla® Glass with Anti-Reflective coating protecting the optically bonded high-contrast 3.5 inch IPS LCD display. It’s water and dust proof and can be mounted both indoors and outdoors. The screen brightness is automatically adjusted with a light sensor. The device is operated by four water tolerant CapSense® touch buttons. The (optional) barograph gives precise air-pressure readings, trends, and history.
Free SIMARINE Android and iOS Apps are available to connect your PICO to your smartphone via Wi-Fi. The Apps allow you to monitor all battery and tank data, upload history, edit and restore settings and even upgrade the firmware with new features.
The PICO offers you a complete monitoring system for your 12/24 volt battery. With many connectivity options and ease of use, this device provides you with a simple overview of all important details regarding your battery (voltage, current, amp hours, battery capacity in%, battery temperature) and also regarding tank levels and temperatures. Equipped with a 3.5″ LCD TFT screen, high-resolution IPS technology with high brightness, optimal color reproduction, wide viewing angles and a virtually indestructible Gorilla glass with anti-reflection coating, the PICO is suitable for both indoor and outdoor installation. Thanks to special capacitive CapSense® touch buttons, you can easily operate your PICO even with wet fingers. You can also monitor individual loads (refrigerators) or generators (wind generator) via a 4-fold measuring shunt.
General specification:
Display: LCD TFT 3,5” High resolution IPS, Gorilla Glass, anti-reflective coating
Human interface: 4 Touch buttons, water resistant
Enclosure: CNC-milled anodized aluminum, water- and dustproof
Dimensions: HxWxD 98 x 83 x 10 mm
Make your battery visible.
Pico ensures precise measurement of voltage, current, and temperature of your battery, gives you an accurate status regarding your battery’s condition, health and many other useful details.
SLEEP MODE
Read your
- Battery charging status
- Time to charge
- Time remaining
Without pressing a button.
TANK SCREEN
Read your tank levels and receive alerts. You can use your existing tank sensors.
BAROGRAPH SCREEN
Receive information regarding air pressure status, changes and trends.
SETTINGS SCREEN
Pico is quick and easy to set up, you can also set it up via your mobile phone.
Gallery
STATUS : show percentage of battrey charge
TIME : time of battery remaining
OVERVIEW : real-time charging overview
ALERTS : never forget when to charge
STATE : real-time battery health algorithm™

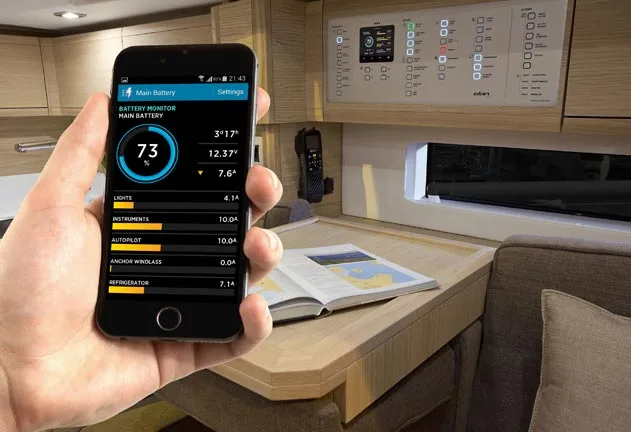

MOBILE remote access via the mobile app
With a free Android and iOS app, you can connect your PICO to your smartphone via Wi-Fi.
This allows you to conveniently monitor the battery from your smartphone and change the settings of your PICO.
Technical specifications
| Operating voltage | 6 – 35 V DC |
| Temperature range | -10 to +70°C |
| Power consumption WiFi on, 100% lighting | 90 mA |
| Power consumption WiFi off, 70% lighting | 35mA |
| Power consumption WiFi off, 0% lighting | 18mA |
| Dimensions stand-alone (without connections) | 98 x 84 x 10 mm |
| Dimensions of built-in installation (without connections) | 108.5 x 94 x 20 mm |
The PICO sets in comparison
| PICO one set | PICO standard set | PICO Blue Set | |
| Battery banks | 1x up to 300A | 1x up to 300A | 1x up to 500A |
| Battery voltage monitoring | 2x | 4x | 4x |
| Tanks | up to 2 tanks | up to 4 tanks | up to 7 tanks |
| Temperatures | up to 2 temperatures | up to 4 temperatures | up to 4 temperatures |
| Barograph | ✔ | ✔ | ✔ |
| Smartphone App / Wi-Fi | ✔ | ✔ | ✔ |
| Consumption / charging current monitoring via four 25 A measuring shunts | ✘ | ✘ | ✔ |
| Casing | aluminum | aluminum | aluminum |
| Anti-reflection Gorilla® glass | ✔ | ✔ | ✔ |
| Waterproof and dus tproof | ✔ | ✔ | ✔ |
| 4 water-resistant CapSense® buttons | ✔ | ✔ | ✔ |
| Expandable with other modules | ✘ | ✔ | ✔ |
Note
- When the shunt is mounted in the battery’s NEGATIVE line, the state of charge (SOC) of a 12, 24, 36, 48, 60, or 72 volt battery system can be monitored. ONLY with 12 or 24 volt battery systems, the shunt can also be mounted in the battery’s POSITIVE line.
- In addition to other measuring modules, up to 6 shunts can be connected to the PICO Standard or PICO Blue, which can independently detect the state of charge (SOC) of different battery systems, e.g. of a 12 volt and a 24 volt battery bank.
