PLUG-N-PLAY to add 12V Charging and 12V Discharging from 36V or 48V Meteor Battery

• Just simply plug in. press the button on the front to turn on. Start Scotty AI to auto-tune.
• You now have 12V charging from a connected Alternator.
• You now have 12V available for loads even when engine is off.
• There is both a HS (36V or 48V) Megafuse AND a 12V Megafuse in the Positive IP66 housing.
• The center section is billet machined Aluminium that acts as a heat sink for Scotty AI inside.
• Charging  maximum current is 125A on 12V side.
• Discharging  maximum current is 125A on 12V side.
• Smart Battery Protect is built in that stops the HS battery discharging below a set voltage.
• User defined 12V output exact voltage. (eg 12.6V)
• On/off switch on front.
• LED indication of operation on the top centre.
• 5 year Warranty

#slider-542 .wd-slide {
min-height: px;
}
@media (min-width: 1025px) {
.browser-Internet #slider-542 .wd-slide {
height: px;
}
}
@media (max-width: 1024px) {
#slider-542 .wd-slide {
min-height: px;
}
}
@media (max-width: 767px) {
#slider-542 .wd-slide {
min-height: px;
}
}
#slide-41009.woodmart-loaded .wd-slide-bg {
}
#slide-41009 .wd-slide-bg {
background-color:#fefefe; background-size:cover;
background-position:center center; }
#slide-41009 .wd-slide-inner {
max-width:1200px; }
@media (max-width: 1024px) {
#slide-41009 .wd-slide-inner {
max-width:1200px; }
#slide-41009 .wd-slide-bg {
}
}
@media (max-width: 767px) {
#slide-41009 .wd-slide-inner {
max-width:500px; }
#slide-41009 .wd-slide-bg {
}
}
  .elementor-41009 .elementor-element.elementor-element-2b3d883{--display:flex;--flex-direction:row;--container-widget-width:initial;--container-widget-height:100%;--container-widget-flex-grow:1;--container-widget-align-self:stretch;--gap:0px;--background-transition:0.3s;}.elementor-41009 .elementor-element.elementor-element-035fcc7{--display:flex;--width:50%;--flex-direction:column;--container-widget-width:100%;--container-widget-height:initial;--container-widget-flex-grow:0;--container-widget-align-self:initial;--background-transition:0.3s;}.elementor-41009 .elementor-element.elementor-element-51c9335{--display:flex;--width:50%;--flex-direction:column;--container-widget-width:100%;--container-widget-height:initial;--container-widget-flex-grow:0;--container-widget-align-self:initial;--background-transition:0.3s;}.elementor-41009 .elementor-element.elementor-element-b4eb889{--display:flex;--flex-direction:column;--container-widget-width:100%;--container-widget-height:initial;--container-widget-flex-grow:0;--container-widget-align-self:initial;--background-transition:0.3s;}.elementor-41009 .elementor-element.elementor-element-3e80ea4{--display:flex;--flex-direction:row;--container-widget-width:initial;--container-widget-height:100%;--container-widget-flex-grow:1;--container-widget-align-self:stretch;--gap:0px;--flex-wrap:wrap;--background-transition:0.3s;box-shadow:0px 0px 10px 0px rgba(0,0,0,0.5);}.elementor-41009 .elementor-element.elementor-element-ac32628 .pp-card-slider-item{text-align:left;}.elementor-41009 .elementor-element.elementor-element-622b151{--display:flex;--content-width:1600px;--min-height:100vh;--flex-direction:column;--container-widget-width:100%;--container-widget-height:initial;--container-widget-flex-grow:0;--container-widget-align-self:initial;--background-transition:0.3s;}

48V Lithium or Sodium IP 66 Pluggable Battery.

Lithium is 2355Wh. Sodium is 1700Wh.

Sodium is safe and good for - 30C. Sodium discharges up to 3C but is limited by BMS of 50A.

36V Lithium Available.

Run trolling motor battery as single house battery on fishing boat. Runs new Garmin 2400W Trolling Motor.

Integrate 12V with Scotty AI M.

Add Scotty AI M and get up to 1500W of charging from alternator and up to 1500W of discharge on 12V side. Safiery Meteor Battery Range Marine and RV Landscape

Plugable Batteries

This is a true plug-n-play battery system with no external terminals visible. It is IP 67 from head to tail. As a result it can be placed virtually anywhere that doesn’t get external impacts. Up to 5 batteries can be plugged togther with a positive plug connection one end and a negative at the other end. There is both a 36V or 48V bus plus a 12V bus inside along with the negative bus. Each bus has a rating of 150A continuous, 250A burst surge. There are up to 2 mega fuses located inside the positive end cap. One fuse for the 48V or 36V power, the other is for 12V when the optional Scotty AI M is installed.

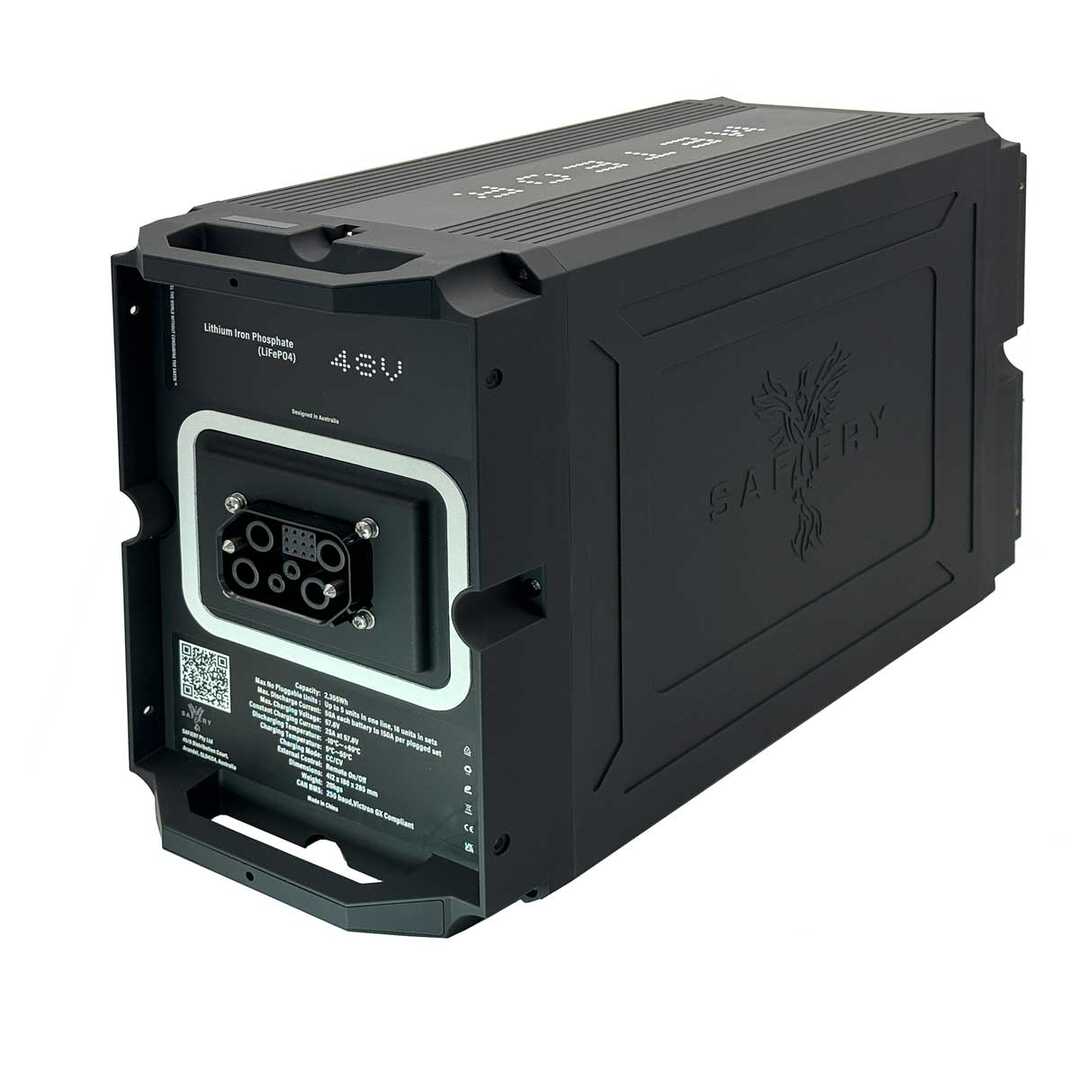

48v Lithium

48V Lithium 2,355Wh Capacity (12V @200Ah is 2400Wh) CAN BMS at 50A Victron Cerbo Compatible on VE.CAN interface. Battery is fixed at 250baud rate CAN BMS. Max Continuous Charge Rate is o.5C so about 1200W Max Continous Discharge is 1C so about 2400W per battery. So for 2 batteries, it is 4800W. For 3 batteries plugged together, it is 7,200W Discharge and 3.600W Charge. Perfectly suits Multiplus II 48/5000 or Multir RS 6000VA

48v Sodium

48V Sodium Charges from -10C. Discharges from -30C No thermal Runaway, Safe in IP67 Case. 1,700Wh (33Ah at 48V) Capacity. CAN BMS at 50A Victron Cerbo Compatible on VE.CAN interface. Battery is fixed at 250baud rate CAN BMS. Max Continuous Charge Rate is 23A so about 1200W Max Continuous Discharge is 3C but BMS has limit of 50A  so about 2400W Caution on the voltage range: Absorb voltage is 63V and the lowest voltage for 90% usable is 38V. This suits Victron 48V Multi RS, Multiplus II and Quattro Inverter/Chargers.

36v Lithium

36V Lithium 2355Wh about 55Ah Capacity CAN BMS at 60A Victron Cerbo Compatible on VE.CAN interface. Battery is fixed at 250baud rate CAN BMS. Max Continuous Charge Rate is o.5C so about 1200W Max Continuous Discharge is BMS 60A so about 2400W

SCOTTY AI M

The Meteor Battery (either 36V or 48V Lithium of Sodium can have the optional Scotty AI M module plugged into the positive end of the battery set. It connects directly to the 12V bus and Mega-fuse (if fitted). The power conversion is bi-directional. If the 12V connection is made to the engine alternator capable of 150A then up to 125A of DC DC charged will automatically charge any of the Meteor batteries. If the engine alternator is less than 150A, don’t be concerned. Scotty AI uses its AI to auto-tune to any alternator. Its has soft, medium and hard selectors for charging at idle if being used as solar backup. The 12V connection can also be routed to all of the on-board 12V loads for 24/7 12V power available (proving the 36V/48V Meteor have sufficient capacity).

Meteor Positive Plug

Robust IP67 US Military Grade Plug. The critical component for a plug n nplay system is the connector. Each of the sockets for this connector are gold plated, spring fitted and rated to 150A continuous. The Connector has a rubber gasket seal around the plug with a tight 30mm push fit. There are 2 RJ45 connections, one for CAN based communication and one for searial communications to batteries placed side by side.

This comparison table is a guide only. Each specific battery have their exact parameters.
