In Stock Sale Extended to Match Melbourne 4X4 Show where it will be on Display
This package includes 2 x 200Ah CAN BMS Lithium.
The 3000VA Inverter won't operate on 1 x 200Ah
Click on Video Below
35 Page Installation Manual and full product manual at the bottom of this page
4WD Canopy Power Pack
Walkthrough of Jupiter Pack in Detail
4WD Canopy Jupiter Power Pack Includes:
- Jupiter Stainless steel case Laser Welded Original stainless Finish 155 Wide x 560L (plus plugs) x 650 H (allow +/- 3mm)
- Front Facia Printed Wrap with labels choose from one of 4 designs. Custom Designs available at additional cost.
- 50A 12V DC DC Victron Orion XS capable of working with any alternator whether smart or otherwise.
- Victron Multiplus-II 12/3000VA Inverter Charger. Has auto-cutover from external power to battery operation. Charges at 1, 750W (120A at 12V) and can overload by 30% for 30 mins when Inverter.
- Victron Cerbo-S GX is Smart Hub driving Display and directing CAN BMS from Lithium Batteries to charging sources for optimal performance.
- Victron Touch 50 Interactive Display
- Touch 50 Anodized panel mount for Touch 50 Display
- 2 x Max 9 magnetic controlled RCBO (highest quality)
- 240V 15A Power In Sockets Panel Mount
- GPO 240V Double Outlet
- Round Outlet USB Type A 2.4A
- Round Outlet USB Type C and Quick Charge
- Round Outlet Cig type female
- Smart Battery Protect 12V 65A
- Resettable Breaker 20A for STAR-light
- Resettable Breaker 60A for Compressor
- Resettable Breaker 20A for Fridges (2)
(Note Jupiter can deliver up to 125A at 12V continuously) - 3 Anderson Plugs at 50A rating for Compressor, Fridges and Solar Input
- STAR-light 10 Channel Digital Switching. 4 Channels positive and 6 channels negatively switched which suits majority of dimmable LED lights. Power limit is 10A on Positive and 10A on Negative Channels.
- STAR-switch water proof 8 button switch. Each button can switch dual colour channels (one press white, second press amber - same button) So 8 buttons can manage 10 channels.
- 10 x Wago 4mm inline connectors for lights and pumps and fridge
- NMEA connector to STAR-light from STAR-switch
- 2 x pre-made amphenol connectors to batteries
- 2 x Amphenol Male connectors (no cable) for connection to Alternator and Chassis ground)
Not Included in Jupiter Package but compatible with Plug-n-play Design is the Safiery 200Ah CAN BMS Battery:
5 Reasons Why the Safiery 200Ah Lithium Battery is Safest Purchase
1. SLIMLINE METAL CASE
The Slimline 200Ah Lithium battery is housed in a metal case. The Internal cells are housed in their own metal frame with an air-gap between the fame holding the cells and the case. This protects the cells from mechanical abuse. You can stand on this battery, drop this battery, squeeze it into very tight spaces and there is zero impact on the safety or performance. ABS cases just crack when exposed to mechanical pressure creating a potential safety issue. Battery is 511L x 125D x 320mmH
2. Battery Management System Protects User
Victron's power electronics are the most advanced in the world. They are one of the few brands that listen to the health of a battery 400 times a second. Unless the battery is giving a healthy heart beat on what is called CAN communication, the charging devices stop charging instantly. This protects the user from a rogue charger pouring in power to a failed or full discharged battery. With a fully discharged battery, the CAN message dictates a low safe trickle charge and Victron's power electronics follow this. The result is a long serving and safe battery system.3. 2000W Induction Hob runs on this Battery
The Slimline 200Ah Lithium battery has a 200A continuous power Battery Management System.
This is enough power to operate the 2000W induction hob shown in the video on a single Safiery 200Ah Lithium Battery.
4. No Shunt Needed with Victron: Plug-n-play
The Smart Battery Management System in this 200Ah Slimline battery communicates with a plug-in data cable (cable provided). There is no need for messy cumbersome shunts with hug lugs.
5. Charge at 80A or 130A with second DC DC
We have kept the biggest feature to last. This battery can accept both the 50A DC DC AND 30A Victron Smart Solar MPPT at the same time.
Add a second Orion XS 50A DC DC and Jupiter will deliver a Whopping 130A of charging from Alternator and 400W Solar.
Other systems that combine Solar and DC DC are limited to 40A/50A of combined charged.
STARTING with our Easiest Wireless "STAR-light" Package

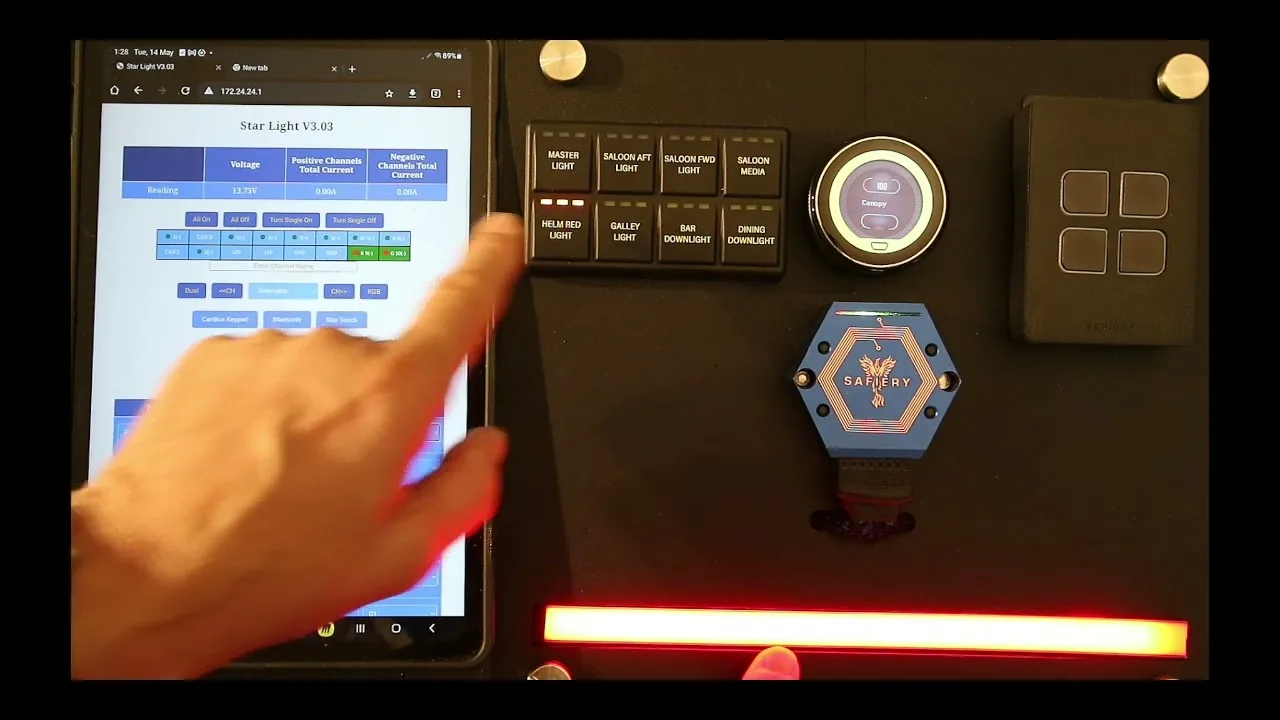

Programming STARSHIP: STAR-light with STAR-switch SP8 and STAR-switch SP4
An 8 Minute Video Walking through the Programming of STAR-light with 2 STAR-switches and STAR-touch
Plain Switch buttons on the outside -
Smart Switches on Inside.
- The difference to other technologies is the STAR-switches themselves are simple to use, custom engraved on the outside.
- But super smart on the inside.
Smarts Inside:
- Double press a switch to change to an alternative LED colour.
- You can have two way, three way or even 4 way switching.
- Wireless switches use the new Bluetooth compatible standard of 100m range.
- Rubberised engraved 8 button keypad is waterproof and can be outside.
- Light sensors are built into some of the switches.
- Every button on any switch/keypad can be custom engraved.
