See the whole daily picture
Check battery state, charging sources, loads and tank levels before you leave or settle in for the night.
QUASAR GLASS COMPLETE
Your complete 12V system on one screen.
Control your circuits and see power arriving from solar, the alternator and 240V mains. Glass Complete adds battery monitoring, charging and tank levels to create one configurable electrical system.
1 × Glass 41 × Glass Router1 × STAR-Power1 × SmartShunt1 × SmartSolar1 × Orion DC-DC1 × 240V charger2 × STAR-Tank
Standard bundle price loads with the catalogue.
Have an account? Log in to see your price on these products.
Log inSwitching, three charging sources and two tanks as standard.
See the whole systemFollow the power
Three ways in. One system out.
Solar, the alternator and 240V mains each charge your battery through their own charger. SmartShunt measures it, STAR-Power switches the loads, STAR-Tank reads the tanks, and Glass shows all of it.
Victron readings travel one way: Glass shows them and does not change a Victron setting. Batteries, panels, cabling and installation are not included. See what it does, and what it doesn't
Sun → SmartSolar · Alternator → Orion · 240V → charger → Battery → STAR-Power → loads
SmartShunt, STAR-Power and two STAR-Tank sensors, straight to Quasar Glass · Glass Router → your phone
Illustrative drawings, readings and timings. Glass screens show the layout, not screenshots.
Features
Everything connected. Everything visible.
Charge wherever you are
Use solar while parked, DC-DC charging while moving and a dedicated 240V charger when mains power is available.
Begin with a complete foundation
Start with the major elements already grouped together, then resize or remove individual products to fit the installation.
In the box
What comes in the bundle

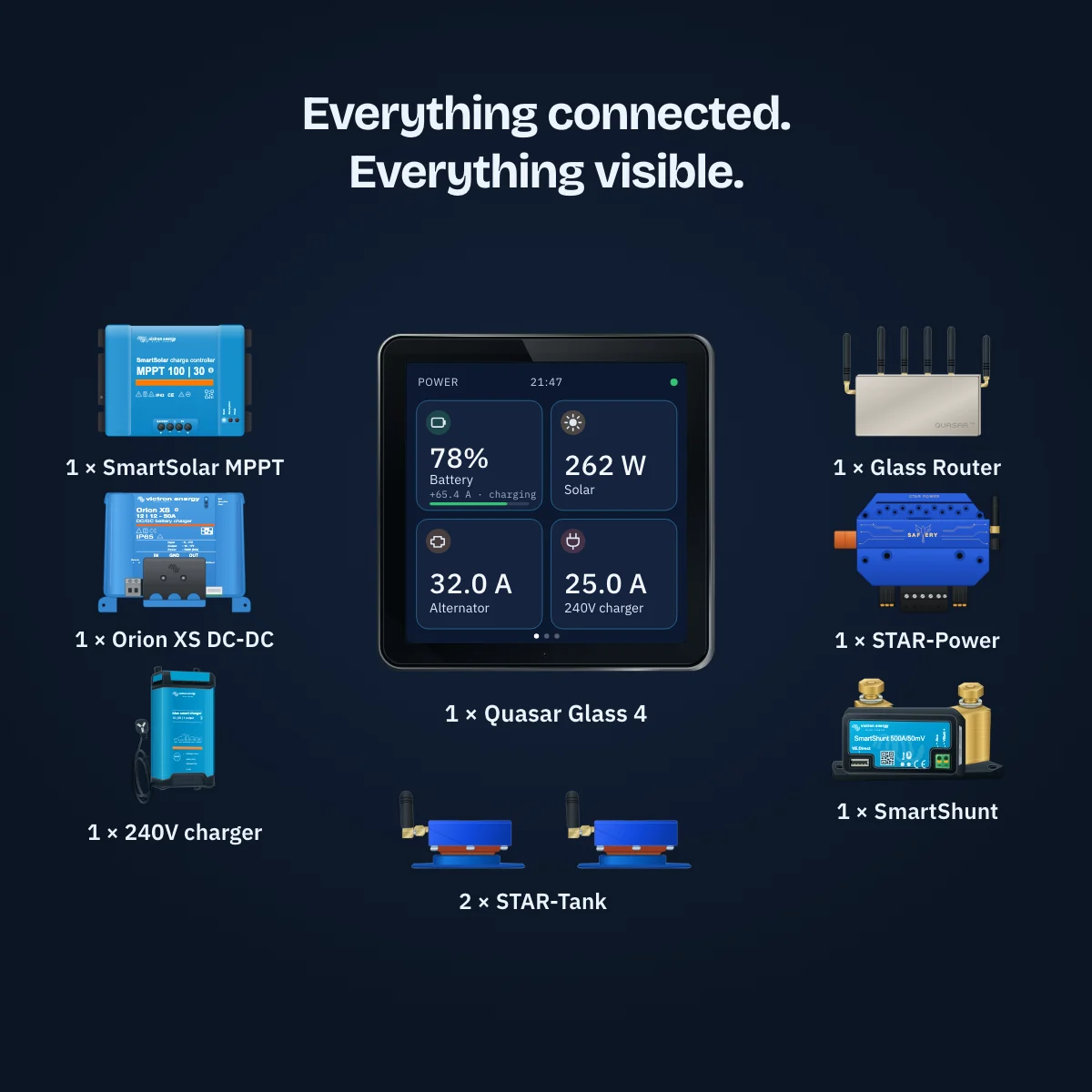

The standard Glass Complete bundle is nine products: one screen, one router, one switching controller, four Victron products for measuring and charging, and a sensor for each of two tanks.
Quasar Glass 4 touchscreenA 4-inch, 480 × 480 touchscreen for the battery, the three charging sources, your circuits and your tanks. It switches your STAR circuits. Runs from a 9 to 24 V DC supply.× 1
Quasar Glass RouterThe connection between Glass and your phone: the same tiles, in the free Quasar Glass App. Dual-band Wi-Fi, with a 4G module fitted for your region. Runs from a 9 to 36 V DC supply.× 1
STAR-Power switching controllerSwitches your 12V circuits: six 30 A outputs and six dimmable 10 A outputs, each with its own backup button on the controller. Glass shows each circuit's confirmed state.× 1
Victron SmartShunt battery monitorMeasures the current in and out of the battery, for its state of charge. The standard size is 500 A. Glass reads it over Bluetooth, read-only.× 1
Victron SmartSolar MPPT solar chargerCharges the battery from your solar panels. The standard model is the MPPT 100/30; choose the size that suits your array.× 1
Victron Orion DC-DC chargerCharges the battery from the alternator while the engine runs. The standard model is the Orion XS 12/12-50A.× 1
Victron 240V battery chargerCharges the battery from 240V mains when it is available: the Blue Smart IP22 12/30 with an Australian plug. Its mains supply is 240V wiring, installed by a licensed electrician.× 1
STAR-Tank radar sensorsOne per tank. Each mounts on top of its tank and runs on its own internal battery. The standard bundle uses STAR-Tank Water for fresh and grey water; diesel tanks use STAR-Tank Fuel.× 2
Batteries, solar panels, tanks, cabling, fuses and installation are not included.
Standard bundle total
Customise Glass CompleteMake it yours
Complete does not mean fixed
Change the charger sizes, choose the number of tanks, substitute the STAR controller, add displays or remove anything you already own. Your price and system summary update as you customise the bundle. Build the complete system around the way you travel.
Standard bundle: 1 × Quasar Glass 4 touchscreen, 1 × Quasar Glass Router, 1 × STAR-Power, 1 × Victron SmartShunt, 1 × Victron SmartSolar MPPT, 1 × Victron Orion DC-DC charger, 1 × Victron 240V battery charger and 2 × STAR-Tank radar sensors.
The customiser needs JavaScript. To change sizes or quantities, email sales@safiery.com.
The system
How it fits together
Power travels on wires. Readings travel wirelessly. These are the connections in the standard bundle.
Power, wired
-
Three ways in
- SunSmartSolar MPPT
- AlternatorOrion DC-DC
- 240V mains240V charger240V side: licensed electrician
- StoredYour 12V batterySmartShunt measures every amp in and out
- SwitchedSTAR-PowerLights, fridge, water pump and accessories
Data, wireless
- SmartShunt, SmartSolar, Orion and the 240V chargerGlassVictron Bluetooth, one way: read-only
- STAR-PowerGlassBluetooth, two way: you switch a circuit and its state confirms
- 2 × STAR-TankGlassBluetooth, one reading per tank
- GlassGlass RouterYour phoneThe router is Glass's connection to your phone
Compare
From one clear screen to a complete power system.
Choose the Quasar Glass bundle closest to your needs, then add, remove or resize individual products to create your system.
| Glass Solo | Glass Tank | Glass Control | Glass Power | Glass CompleteThis one | |
| Quasar Glass 4 touchscreen | 1 | 1 | 1 | 1 | 1 |
|---|---|---|---|---|---|
| Quasar Glass Router | None | 1 | 1 | 1 | 1 |
| Switching | None | None | STAR-Light | STAR-Power | STAR-Power |
| Battery monitoring | None | None | None | SmartShunt | SmartShunt |
| Solar charging | None | None | None | SmartSolar MPPT | SmartSolar MPPT |
| Alternator (DC-DC) charging | None | None | None | Orion DC-DC | Orion DC-DC |
| 240V charging | None | None | None | None | 240V charger |
| Tank sensors | None | 2 × STAR-Tank | None | None | 2 × STAR-Tank |
Standard contents of each bundle. Every bundle can be customised: add, remove or resize individual products, subject to compatibility.
Boundaries
What it does, and what it doesn't
| Function | In this bundle | How |
|---|---|---|
| SmartShunt, SmartSolar, Orion and 240V charger readings on Glass | Yes | Victron Bluetooth Instant Readout, read-onlyEnter each product's Instant Readout key from VictronConnect once. |
| Changing a Victron setting from Glass | No | The Bluetooth path is read-onlyCharge settings stay in VictronConnect. |
| Switching 12V circuits | Yes | STAR-Power, over Bluetooth straight to GlassEach tile shows the circuit's confirmed state. |
| Tank levels | Yes | One STAR-Tank sensor per tank, over Bluetooth straight to Glass |
| Your system on your phone | Yes | Through the Glass Router, in the free Quasar Glass AppThe router is Glass's connection to your phone. It does not relay the Bluetooth products. |
| Charging from 240V mains | Yes | The dedicated 240V battery chargerIts mains supply is 240V wiring, installed by a licensed electrician. |
| 240V power from the battery | No | There is no inverter in this bundleGlass Complete charges from 240V; it does not make 240V. |
| Victron Cerbo GX | No | Not includedThis bundle reads the Victron products over Bluetooth, with no GX device. |
| Digital twin, AI diagnosis or remote health service | No | These belong to the separately defined Quasar ONE serviceThe Glass Router connects Glass to your phone; it does not create a digital twin. |
Wireless data. Normal installation.
Wireless describes the data connection. Glass, the router, STAR-Power, the chargers and every load still need power wiring, fusing and installation. STAR-Tank sensors run on their own internal batteries.
Mains wiring is a licensed job
The 240V charger runs from mains power. Any 240V wiring in your boat or vehicle, from the inlet to its outlets, must be installed by a licensed electrician.
Victron products in VictronConnect
Turn on Instant Readout on each Victron product and copy its key into Glass. Glass then shows its readings. Their charge settings are set in VictronConnect, not on Glass.
Specification
The details
Quasar Glass 4 touchscreen
| Screen | 4-inch 480 × 480 touchscreen |
|---|---|
| Supply | 9 to 24 V DC |
| Wireless | Wi-Fi 2.4 and 5 GHz, Bluetooth 5.4 |
| Victron products | Reads Bluetooth Instant Readout broadcasts, read-only |
Quasar Glass Router
| Role | The connection between Glass and your phone |
|---|---|
| Wi-Fi | Dual-band 2 × 2, 2.4 and 5 GHz |
| Ethernet | 5 × Gigabit |
| Cellular | 4G module fitted for your region, SIM holder |
| Supply | 9 to 36 V DC |
STAR-Power switching controller
| Outputs | 6 × 30 A on/off and 6 × 10 A dimmable, 12 in total |
|---|---|
| Backup buttons | 12, on the controller face |
| Supply | 10 to 32 V DC |
| Protection | Fuseless; opens a short in 80 microseconds |
| Communication | CAN (2 ports), Bluetooth Long Range and Matter over Wi-Fi |
| Construction | Anodised aluminium, IP54, 160 × 120 × 28 mm |
Victron SmartShunt
| Standard model | SmartShunt 500 A / 50 mV |
|---|---|
| Other sizes | 300 A, 1000 A and 2000 A |
| On Glass | Battery state of charge, voltage and current, over Bluetooth Instant Readout, read-only |
Victron SmartSolar MPPT
| Standard model | SmartSolar MPPT 100/30: up to 100 V from the panels, up to 30 A of charge |
|---|---|
| Other sizes | MPPT 75/15, 100/50 and 150/35 |
| On Glass | Solar power and charge, over Bluetooth Instant Readout, read-only |
Victron Orion DC-DC charger
| Standard model | Orion XS 12/12-50A DC-DC battery charger |
|---|---|
| Charges from | The alternator, while the engine runs |
| On Glass | Charge readings over Bluetooth Instant Readout, read-only |
Victron 240V battery charger
| Standard model | Blue Smart IP22 12/30 (1), Australian and New Zealand plug |
|---|---|
| Output | 12V battery, up to 30 A, one output |
| Installation | Its mains supply is 240V wiring, installed by a licensed electrician |
| On Glass | Charge state and output, over Bluetooth Instant Readout, read-only |
STAR-Tank radar sensors
| Sensing | Radar, from the top of the tank; no probe in the liquid |
|---|---|
| Quantity | One per tank; two in the standard bundle |
| Power | Its own internal battery |
| Types | STAR-Tank Water for fresh, grey and black water; STAR-Tank Fuel for diesel, with a metal reflector plate |
Manuals & datasheets8
Glass reads the Victron products through their Bluetooth Instant Readout: how to turn it on in VictronConnect ↗. More manuals are available on request: sales@safiery.com.
Questions
Before you buy
Does Glass Complete include a battery?
No. Glass Complete charges, measures and shows your own 12V battery. The battery, solar panels, tanks, cabling, fuses and installation are not included.
Does it give me 240V power outlets?
No. The 240V charger charges your battery from mains power when it is available. There is no inverter in Glass Complete, so it does not make 240V from the battery.
Who installs the 240V charger?
The charger runs from mains power, and any 240V wiring in your boat or vehicle must be installed by a licensed electrician. Its battery side is ordinary 12V DC wiring. Follow each product's manual for cable sizes and fusing.
Can I keep Victron products I already own?
Yes. Choose "I already have one" for any of them when you customise. Glass reads compatible Victron Bluetooth products once you enter each product's Instant Readout key from VictronConnect. That path is read-only.
What if part of my system can't be ordered online?
Then the customiser sends the whole configuration to our team as a quote request, instead of putting part of the system in your cart. We confirm the price and delivery for the complete system.
Can I change what is included?
Yes. Each bundle is a starting configuration. You can add, remove or resize individual products, subject to compatibility requirements.
Why do most bundles include the Glass Router?
The Glass Router is the connection between Glass and your phone. Glass Solo does not include it because Solo is designed as a standalone local display.
Does the router provide a digital twin?
No. The router connects Glass to your phone; it does not create the Quasar ONE digital twin. Digital-twin, system-health and predictive-service features belong to a separately defined Quasar ONE service.
Can Glass control Victron products?
Compatible Victron Bluetooth broadcasts can be displayed, but that Bluetooth path is read-only. Any control capability must be explicitly supported by the selected connection and product configuration.
Do wireless products still need power wiring?
Yes. Wireless describes the data connection. Displays, controllers, chargers and electrical loads still require appropriate power wiring and installation.
Talk to an engineerNot sure which sizes suit your build? Tell us your battery, solar array and alternator, and we will confirm before you buy.Email sales
Trade pricingInstallers and dealers see their own pricing across the catalogue once signed in.Trade account
Warranty and supportWarranty terms, RMA and returns are handled directly by Safiery.Warranty and RMA
Your complete 12V system on one screen.Switching, three charging sources and two tanks as standard, customised to your installation.
Customise Glass Complete
