EASY INTEGRATION REDARC 1230S2BMS
This technical article is designed to give value to the reader knowledge on integrating the REDARC BMS with both the Triple Insulated Solar and Simarine Monitoring System.
Redarc is a respected brand in the vehicle power products. Their 1230S2 BMS makes easy integration of:
|
BMS1230S2 Displays
|
SAFIERY Integration can add
|
|
|
No Smartphone App |
Smartphone App Included
|
|
|
Solar PV Voltage |
X |
|
|
DC to DC Vehicle Voltage |
X |
|
|
AC Power Voltage |
X |
|
|
Battery Voltage |
X |
X (On Smartphone as well) |
|
Solar or DC to DC Power |
X |
X (On Smartphone as well) |
|
Time to Go and SOC Alarm |
TTG |
X (On Smartphone as well) |
|
Individual Fridge Power |
X (On Smartphone as well) |
|
|
Tank (Fresh, Grey) Levels |
X (up to 12) (On Smartphone as well) |
|
|
Temperatures (fridge etc) |
X (up to 14) (On Smartphone as well) |
|
|
Pitch and Roll Angle |
X Both (On Smartphone as well) |
|
|
LPG Bottle Capacity |
X Up to 2 (On Smartphone as well) |
| Safiery Comment | |||
| AC Input Voltage Range (nominal) | 220-240VAC50Hz | ||
| Power Rating | Good | 520W | |
| Efficiency | 80% – 90% | ||
| Connection | IEC MainsPlug | ||
| DC Input | |||
| DC Input Voltage Range | Good | 9 – 32V | |
| Turn ON/OFF Threshold 12V(24V) | Good | 13.2V/12.7V (26.4V/25.4V) | |
| Power Rating | Good | 520W | |
| Efficiency | 94% | ||
| Connection | Phoenix 1967498Connector | ||
| Solar Input | |||
| PV Input Voltage | Good | 9 – 32V | |
| PV Turn ON (OC Voltage) | Good | 17.5V | |
| Power Rating | Good | 520W | |
| Efficiency | 93% | ||
| Connection | Phoenix 1967498 Connector | ||
| Max Volts @ Bat (25°C Nominal) | |||
| Touring Mode | Float | ||
| Gel Setting | Good | 14.4V | 13.5V |
| AGM Setting | Good | 14.4V | 13.5V |
| Calcium Setting | Good | 15.2V | 13.5V |
| Standard Lead Acid Setting | Good | 14.8V | 13.5V |
| Lithium Setting | Touring Mode and Float Mode Good. Recommend different plan for storage at 40-60% SOC. | 14.5V | 13.6V |
| Output Current (Nominal) | Good | 30A | |
| Temperature Compensation | |||
| Standard Lead Acid AGM, Gel or Ca | Good | +30mV / °C < 25°C < -30mV /°C | |
| Lithium Setting | Good | 40°C < 0.5%/°C <60°C | |
| Operating Temperature* | -40°C – 80°C | ||
| Over Temperature Shutdown | Good | Yes | |
| Total Battery Capacity | Good | 40 – 800Ah | |
| Output Battery Volts (Nominal) | 12V | ||
| Output Battery Volts (Minimum) | Good | 4V | |
| Max Current on Load Disconnect | 1A | ||
| Memory Save on Battery Disconnect | Good | Yes | |
| Output Protection | |||
| Short Circuit Protection | Good | Yes | |
| Surge Protection | Good | Yes | |
| Reverse Polarity Protection | Good | Yes | |
| Overload Protection | Good | Yes |

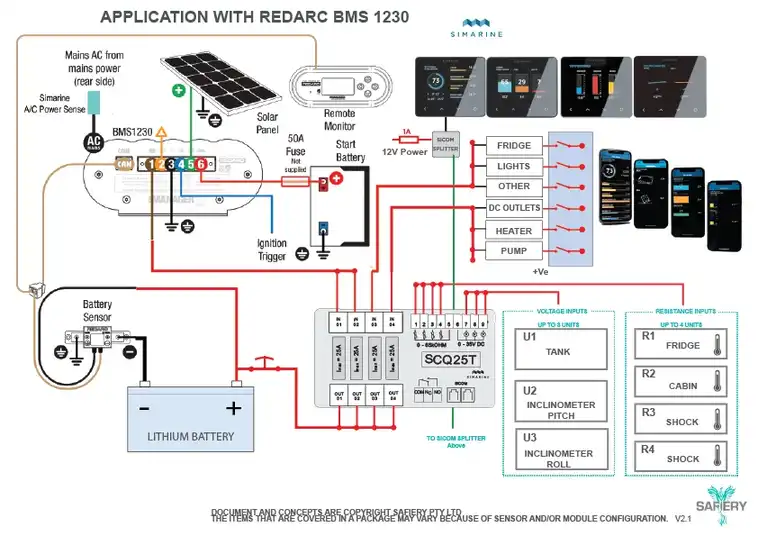

BMS1230S2 Wiring to Simarine
