Safiery Integrated Display: Package for RV, Vehicle Digital Switching 24V, Victron, TPMS Ready, Fusion
In stock
This package is for 24V digital Switching.
Note that Safiery Solo Board requires 12V power to operate.
Note that this package supports ONE STAR-touch SP8 Keypad.
If adding more than 1 keypad the optional MCU needs to be added.
Note if purchased without a complete package from Safiery, the configuration will be Safiery’s standard which can not be changed by the purchaser. The purchaser can of course load their own configuration software and own graphics.
Adding Victron Cerbo on with the Solo board will require additional engineering to be purchased from Safiery. Also adding the TPMS will require additional engineering. Safiery DOES NOT release the Software config file which is compiled and cant be read or modified by the purchaser. Only Safiery can access and modify the standard file.
If purchased as part of a packaged system with Victron components, Safiery do the changes and modifications necessary for the complete package.
Necessity is the Mother of Invention
Simplify your Screens to just one… then take this ONE 10″ Screen to many locations.
- Mount as a head unit in a LC79, Unimog, Iveco, OKA or other. Then just lift off the 10″ screen and place in the canopy or camper.
- Mount as a head unit in a caravan. Then just lift off the 10″ screen and place on the suction mount in the vehicle.
- Control virtually every conceiveable connected item from this screen.
- Take it to the fire at night and control your speakers, lights and monitor your battery. Take it to your Roof Top Tent.

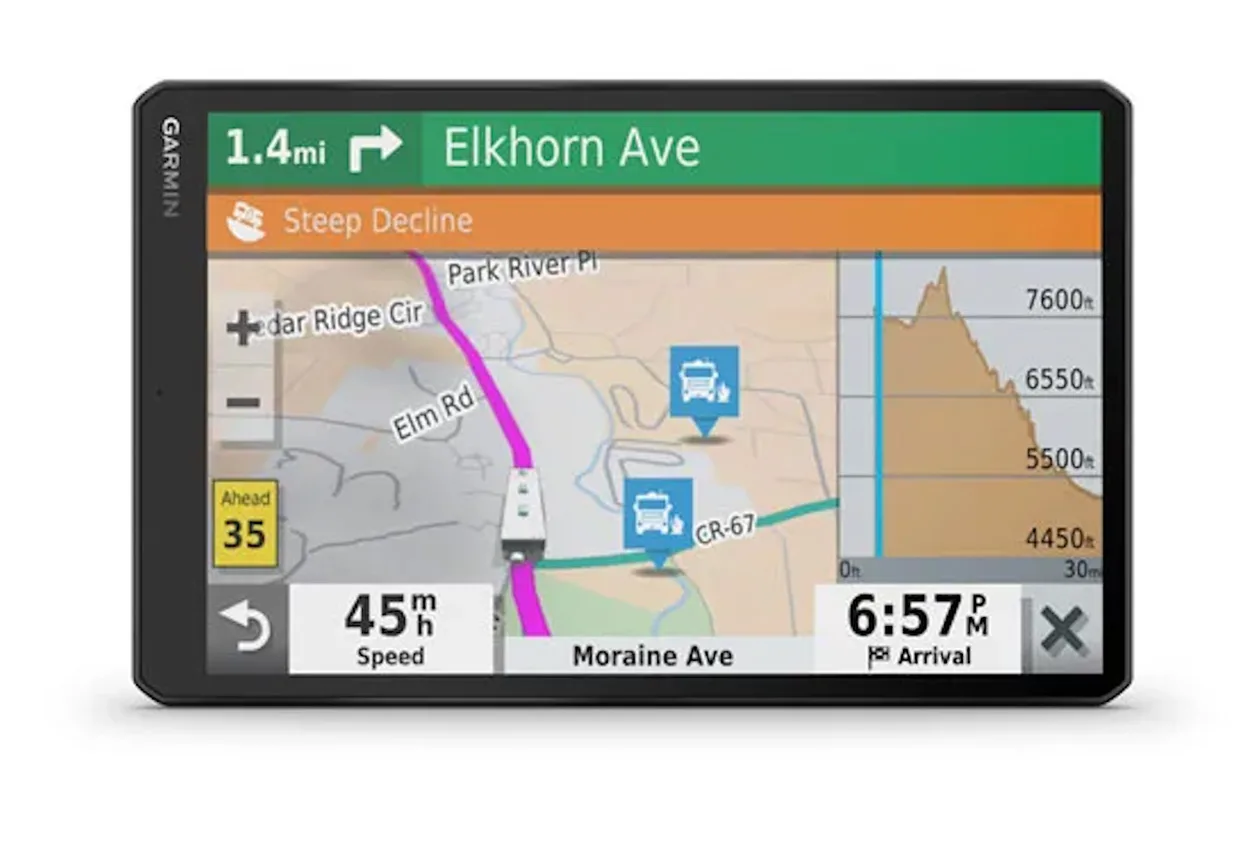

Award Winning GARMIN Navigation
- This navigation does not require the internet. (like Apple Carplay does)
- Get Camper-specific Garmin navigation with hands-free voice control,
- Camper routing that matches your rig, driver alerts and points of interest.
- Sets up your Vehicle and Van Profiles
- Set up your trip before leaving home.
- Keeps a History of your trip.
- Enabling or Disabling Driver Alerts
- Red light and speed cameras
- Navigate to your destination
- Select Routes on the map… Plus much more…

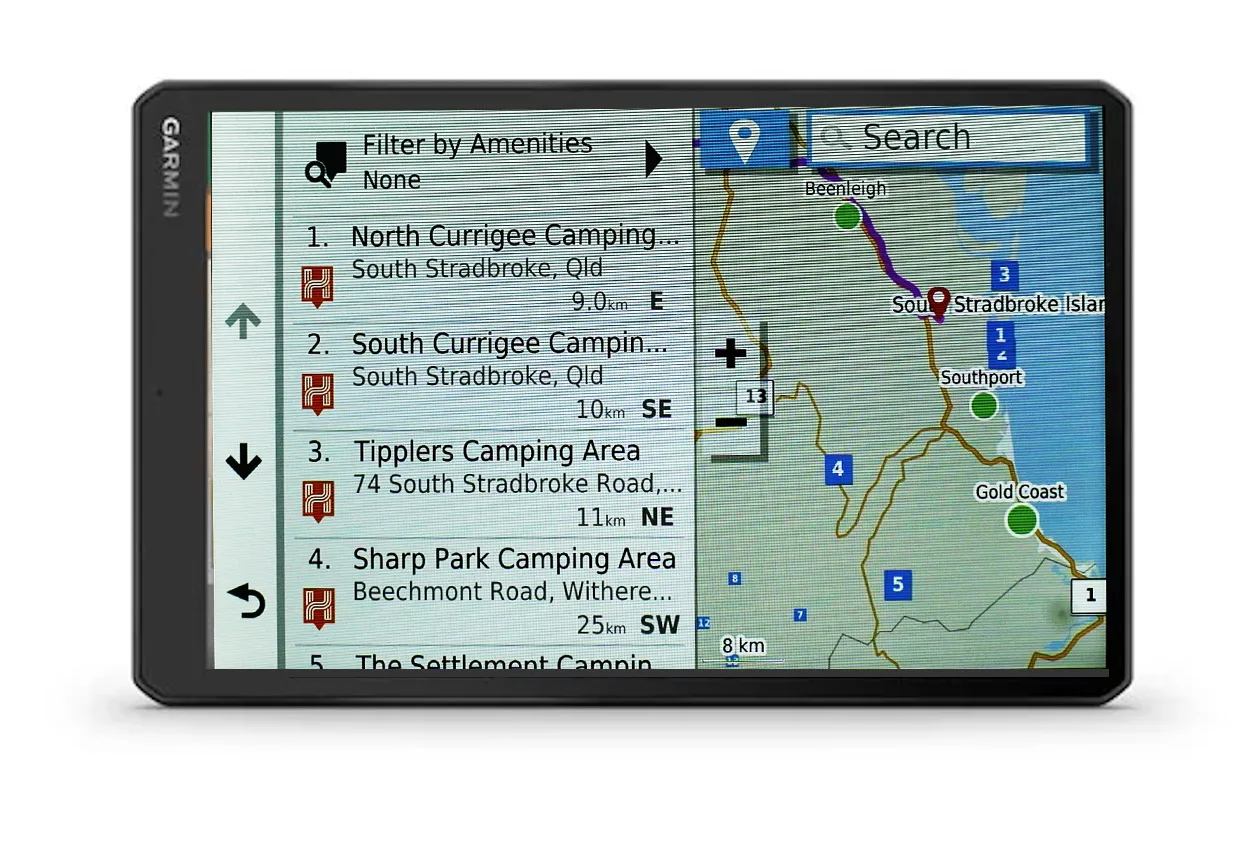

Award Winning HEMA Locations - built for Camping
Australian maps with HEMA integration: they can be incorporated into your travel plan BEFORE you leave.
There is no need for the internet (like Apple or Google Maps).

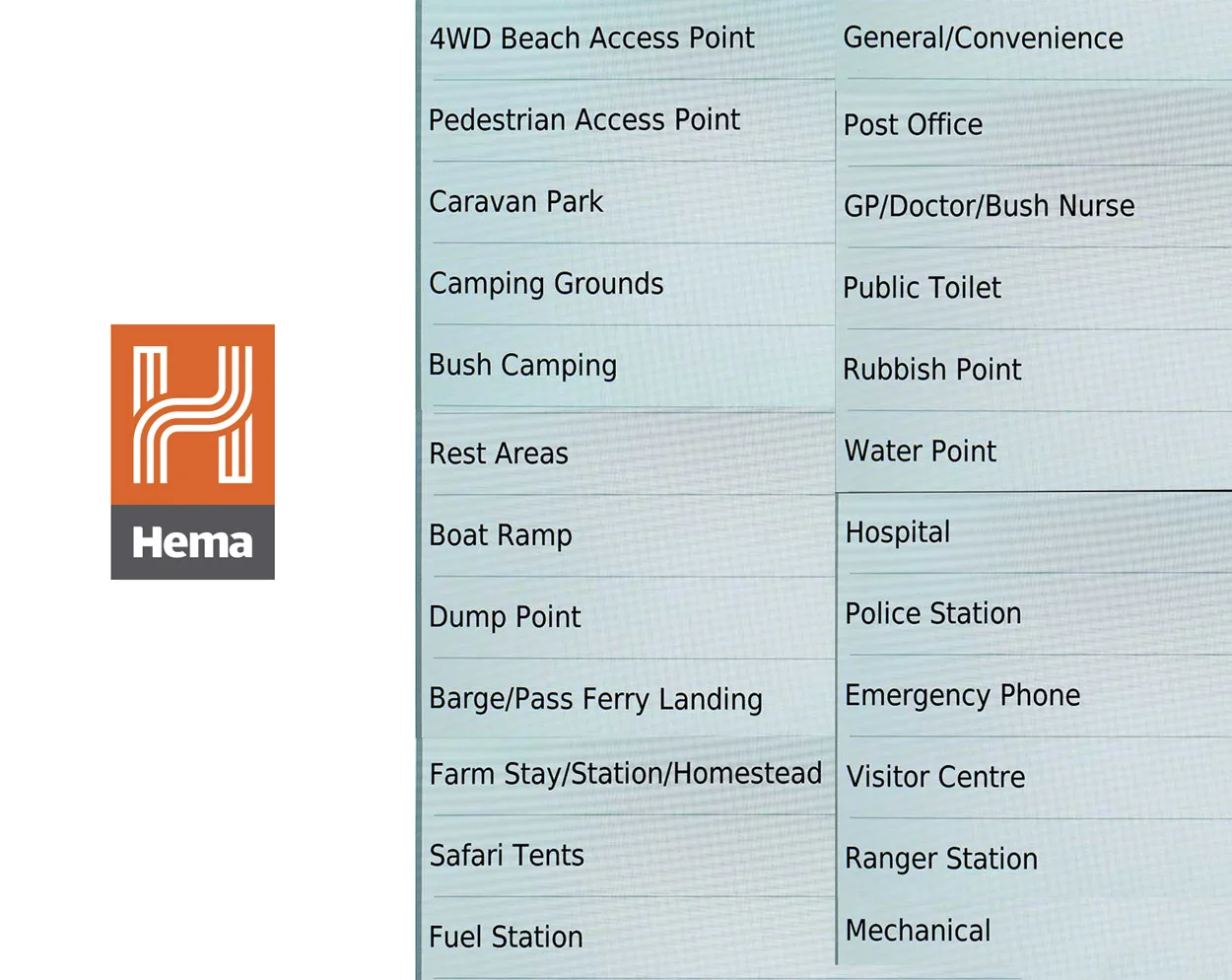

The locations are all stored inside the head unit. Here is the category list from HEMA.

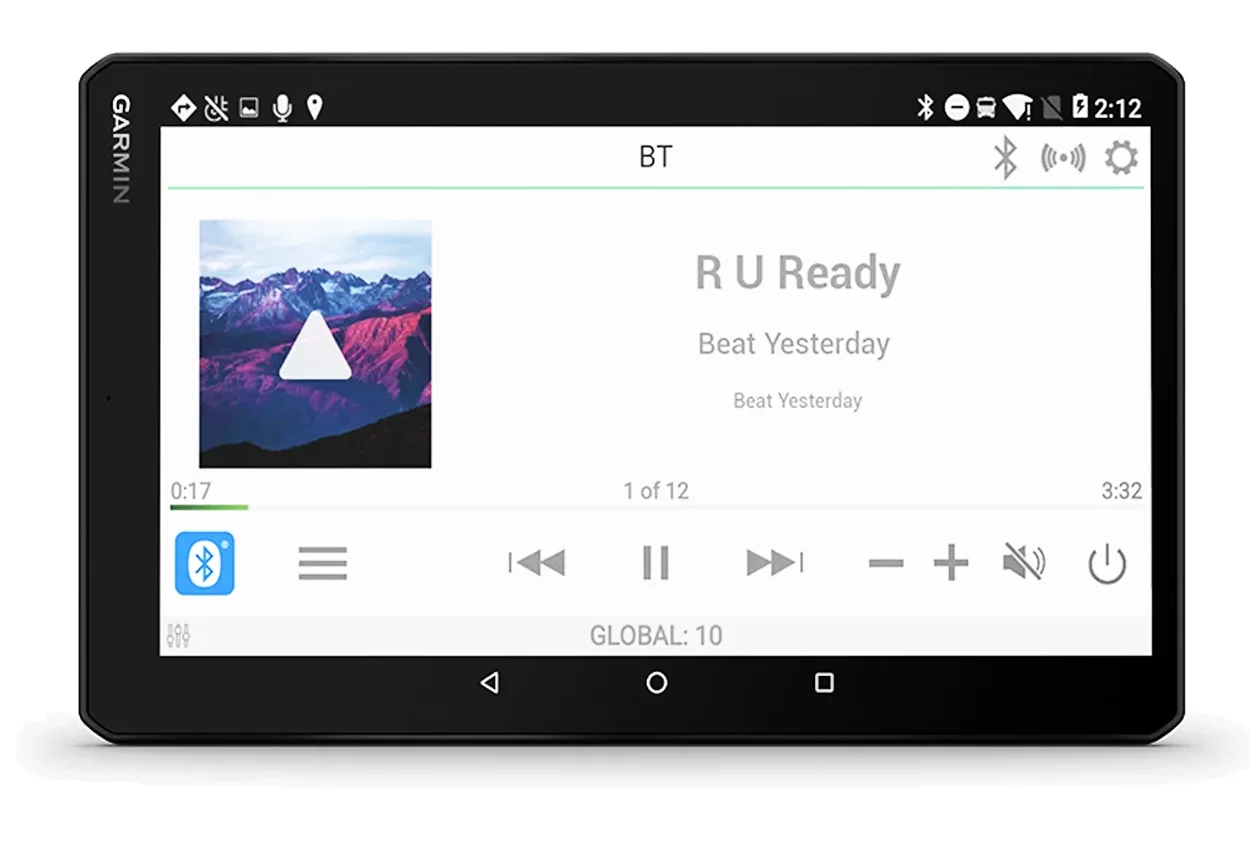

Award Winning FUSION Sound System
- Radio, Bluetooth Streaming, Apple Airplay, USB, Android, UPnP.
- 4 Zones ready for Speakers
- Suggest 2 Zones in Canopy/ Camper; 2 Zones in Cab
- Control Volume by Zone
- Adjust Tones by Zone
- Attach a Subwoofer
- Digital Signal Processing (DSP)
- Muting all Connected Stereos
- Automatic Volume Adjustment Based on Speed
- USB Device Playback Control
Optional 4 Speaker Package for FUSION Sound System
- Outdoor Speakers are IP65.
- 4 Zones to suit Speakers
- Suggest 2 Zones in Canopy/ Camper; 2 Zones in Cab
OR 2 Zones inside/ 2 Zones outside in Caravan - Control Volume by Zone
- Adjust Tones by Zone
- Rated at 100W per speaker
- Digital Signal Processing (DSP)
- Frequency Response of 67 Hz – 20 kHz
- 431 x 171 mm
- 41mm Deep
- Can have optional spacer for surface mounting.

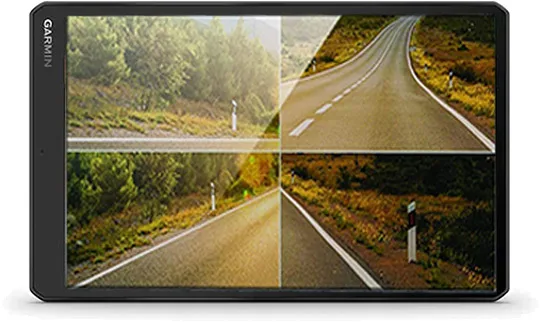

Award Winning IP Cameras
- While up to 4 RCA cameras can be connected,
- The power of cameras is with IP cameras. They are inexpensive and higher resolution.
- The optional modem router is required for the IP Cameras.
- IP Cameras can be visible on your Smartphone connected to the local WiFi
- IP Cameras can also be visible through the internet when away from the Van or Vehicle for remote viewing of activity.

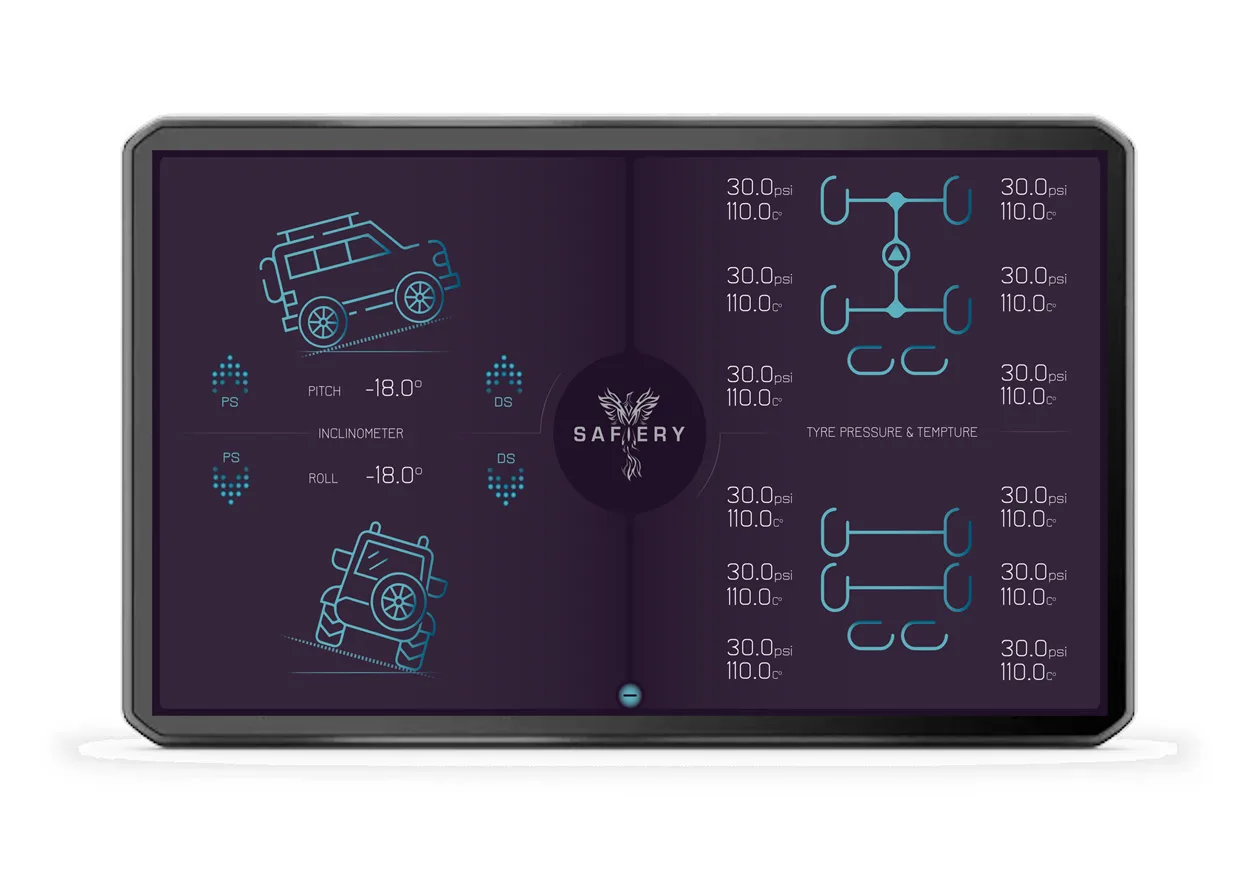

Award Winning TPMS & Airbag Automation
- Tyre Pressure AND Temperature is critical to monitor in a big trip.
- Just add the External Sensor on the Tyre Inflator stem
- Configure each cap to its location.
- Water resistant.
- Replaceable sensor batteries.
- Sensors transmit pressure and temperature data every 5 minutes.
- Fast leakage alert.
- Airbag control at touch of button
- See Pitch and Roll on Screen

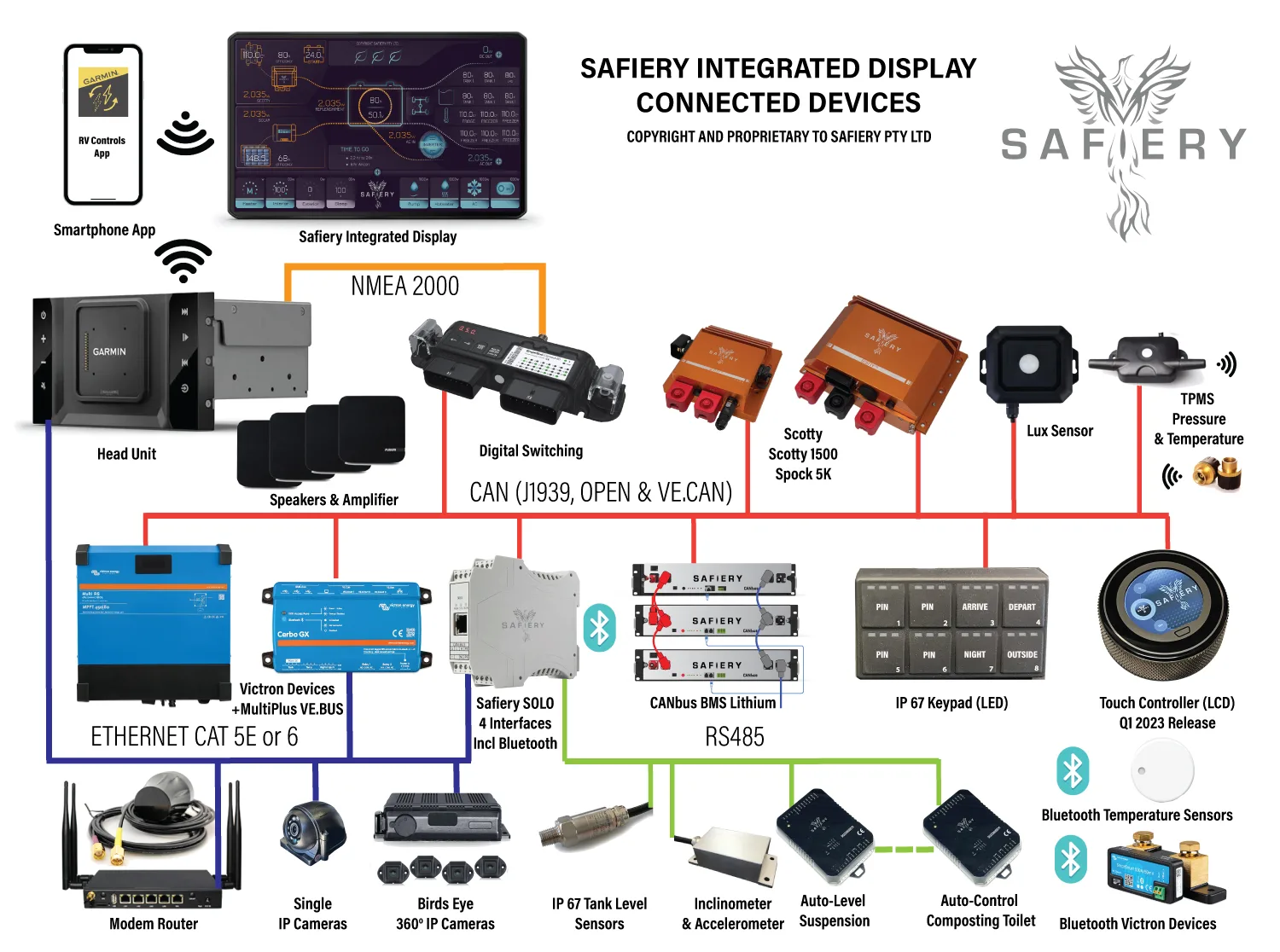

Safiery pulls all this together in the Integrated Display
Available Now for Built Packages
- 10 inch or 8 inch Screen (removable as a hand held tablet and placed on separate ganetic charging mounts)
- No Internet needed for this integration
- Cloud reporting and SMS alerts does need Internet.
Victron smart products ONLY integrated if supplied by Safiery as part of package. Integration cannot provided otherwise as programming has to be done in factory at time of building/commissioning.
The Integration requires an end user software licence agreement that is perpetual but terms and conditions apply.
- CANbus Connected Lithium:
- Safiery 48V 2,400Wh and 4,800Wh CANbus Lithium (3 models)
- Safiery 12V 200Ah (2,400Wh) CANbus Lithium
- SOC
- Voltage, Current and Watts
- Charging or discharging visible
- Conditions visible
- Up to 12 Alerts/Alarm Conditions
- Charg Current Limit
- Discharge Current Limit
- Max Charge Voltage
- Victron Inverter Charger (VE.BUS or VE.CAN) with:
- On/Off Touch Control
- AC Current Input Change
- AC Power IN
- AC Power Out
- AC Power Consumption today
- Victron Smart Solar Controller
- PV Voltage In
- Solar Power Out
- Victron Smart Shunt
- Voltage
- Current/Power
- Victron GX Tank 140 integrated
- Up to 14 Tanks
- Victron Connected Temperature Pucks (Bluetooth) Inegrated
- Temperature
- Humidity (if available on puck)
- Scotty Inegrated
- Alternator temperature
- Power W
- Starter Battery Voltage
- HS Lithium Voltage
- Scotty DC DC Board temperature
- Digital switching integrated
- Each Digital Switching Module has 20 DC 12V or 24V outputs at 10A each. Outputs can be bridged for 20A, 30A or 40A levels. (cant be mixture of 12V/24V, has to be one or the other per module. Can have 12V module and 24V module side by side.)
- Optional smart relays to switch 240V devices
- Digital Switch does not require any fuses.
- Optional manual backup available on the digital output device.
- Up to 7 inputs either analog voltage, temperature, manual switch inputs available
- Solar Irradiation Sensor (optional)
- Indicates maximum solar yield possible at any time
- Guide to panel cleaning and shading effects
- Garmin FUSON Sound Integrated
- IP Cameras Integrated (requires cameras and optional Safiery Super Modem)
- Garmin Navigation
- HEMA Pack for Garmin Integrated
- Screen detaches and simply places in vehicle or canopy or caravan or motohome
- Smartphone App
- Smartphone can connect to switching using Wifi if no internet.
When you purchase a Victron populated system togther with this item, we add the integration and change the screen to the one shown in the image above. There may be optional items shown above which are NOT included.
| Touch screen | Yes, 10-inch Display |
| Display size | 21.6 cm W x 13.5 cm H; 10.1-inch (25.7 cm) diag |
| Product dimensions | 24.5 cm W x 15.4 cm H x 1.7 cm D |
| Display resolution | 1280 x 800 WXGA |
| Battery | rechargeable lithium-ion |
| Display controls | Power, volume up/down, micro USB, microSD™ |
| Preloaded street maps | Yes, Includes
Australian Maps and localities |
| Specialised Camper/Caravan routing | Yes, custom routing takes into account the size and weight of your vehicle then finds the best route for your trip |
| Road elevations | Yes |
| Speed limit changes | Yes |
| Sunrise/sunset times | Yes |
| 3D buildings and terrain | Available on the 8-inch and 10-inch displays |
| Includes map updates | Yes, Wi-Fi® map updates |
| Data cards | microSD™ card (not included) |
| Garmin Real Directions™ landmark guidance | Yes |
| Route shaping through preferred cities/streets | Yes |
| Voice-activated navigation (operate device with spoken commands) | Yes |
| Bluetooth® calling on Smartphone | Yes |
| Lane assist with junction view (displays junction signs) | Yes |
| Speed limit indicator (displays speed limit for most major roads but not all) | Yes |
| Driver alerts for sharp curves, school zones, red light and speed camera warnings and more | Yes |
| GPS | Yes |
| GLONASS | Yes |
| Galileo | Yes |
| HEMA Maps | Yes |
| TripAdvisor® ratings for POI | Yes |
| ACSI | Yes |
| Live traffic via smartphone | Yes |
| Smart notifications | Yes on Drive App |
| Address sharing | Yes |
| Live Traffic | Yes |
| Basic weather and forecasts | Yes |
| Weather radar (free for 2020) | Yes |
| Weather road conditions (free for 2020) | Yes |
| Weather alerts (free for 2020) | Yes |
| Live parking information | Yes |
